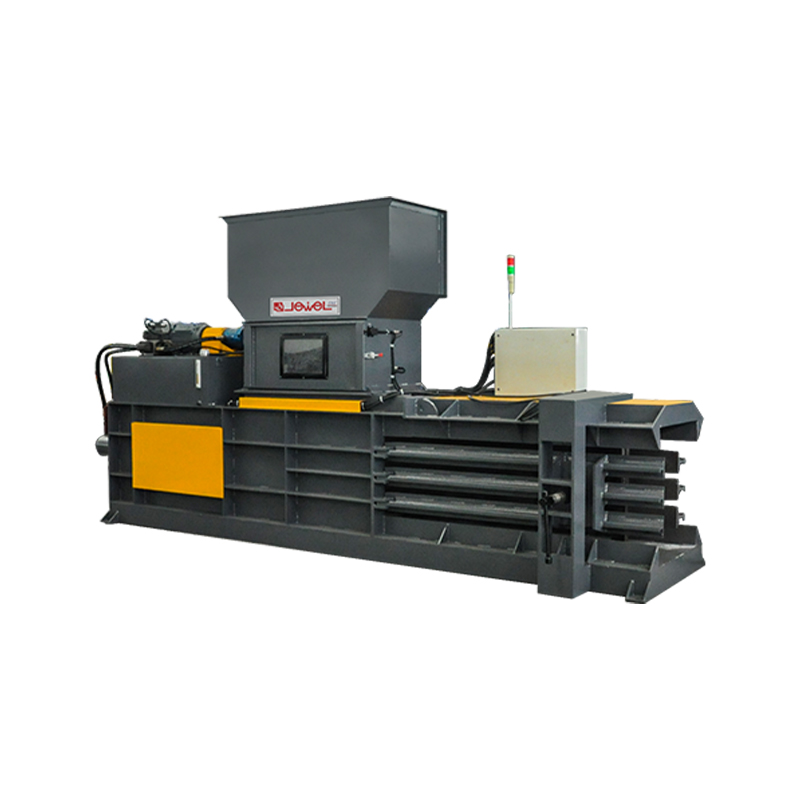

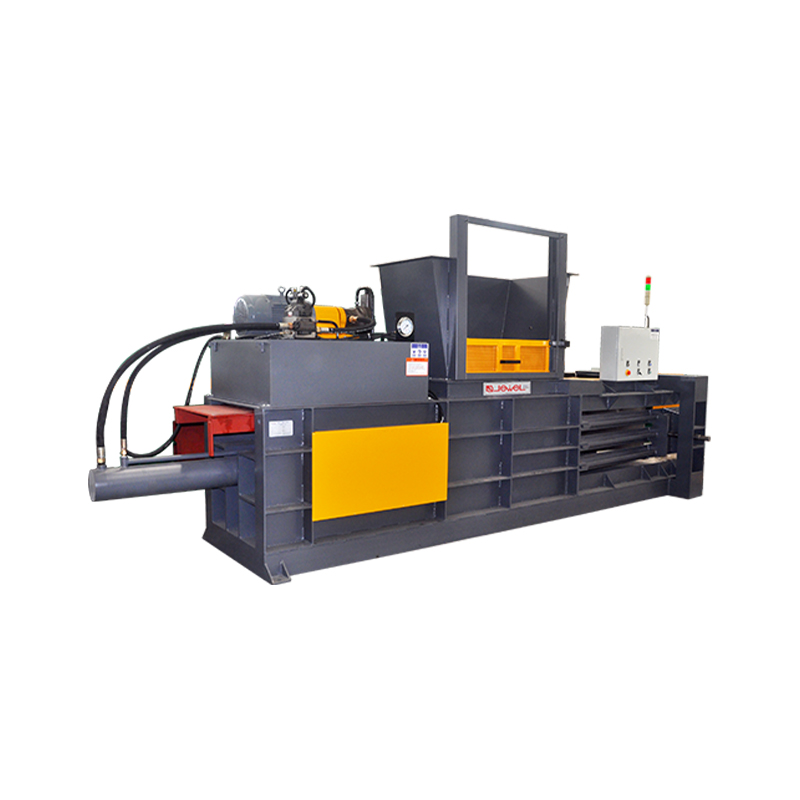

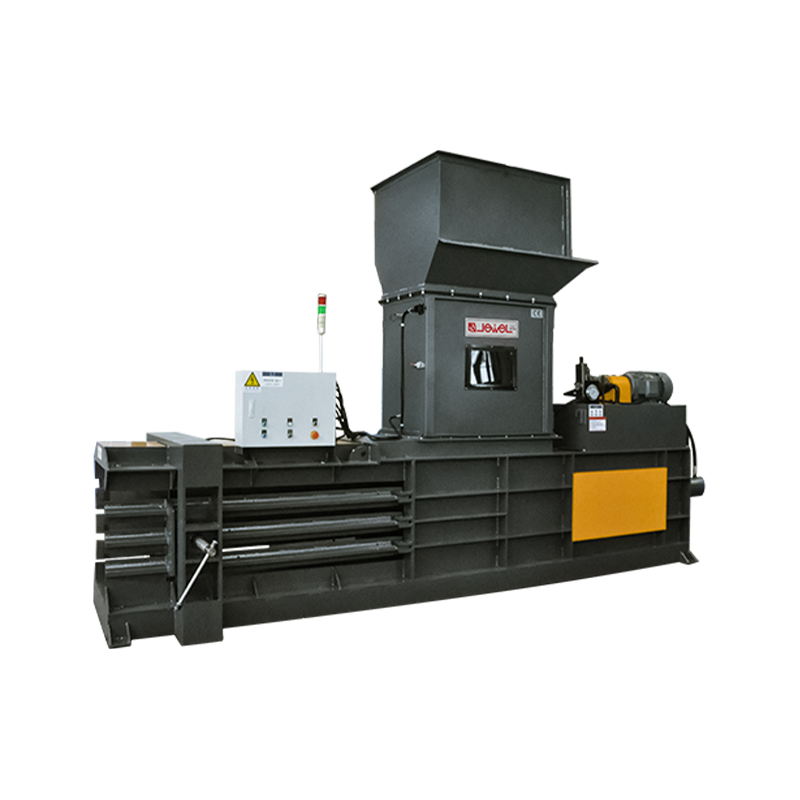

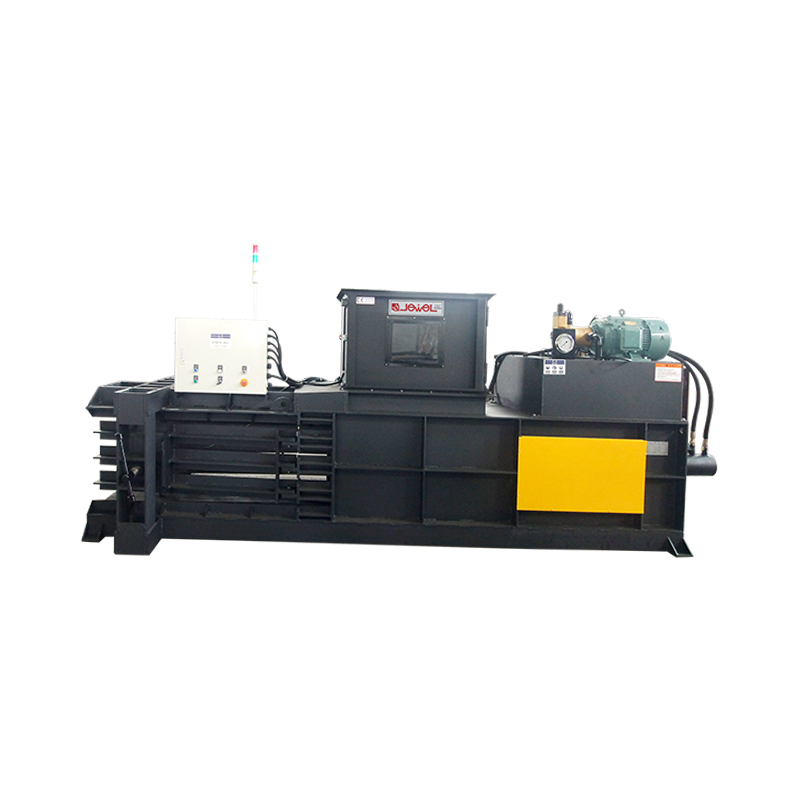

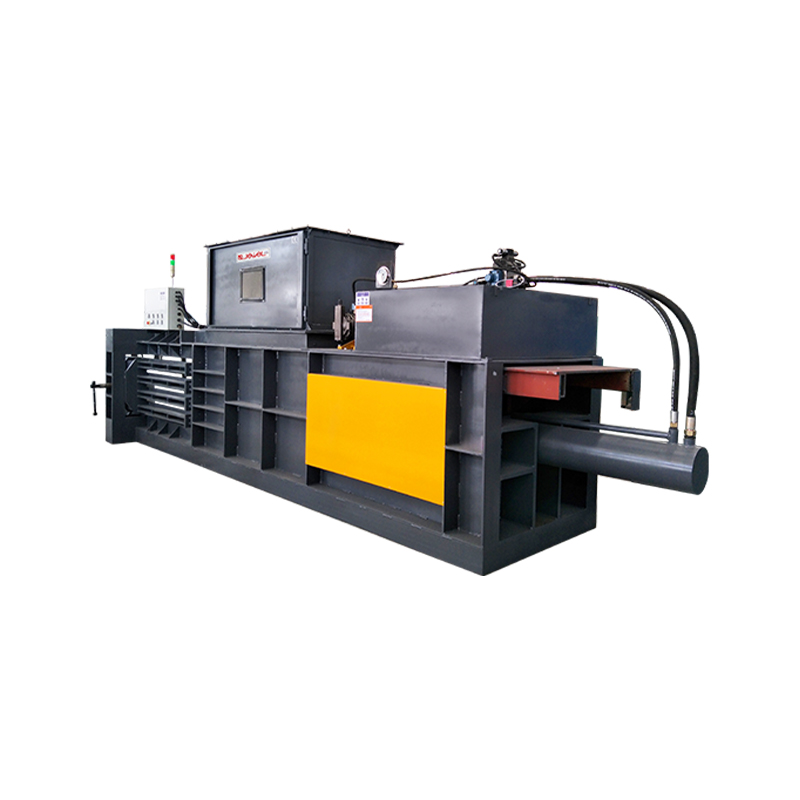

Horizontal Semi-Automatic Hydraulic Baler

It is widely used for compression and baling packaging carton printing paper mill food garbage recycling, and other industries.

  • Adopting the left and right shrinking method through the rod manual tightening and relaxation to adjust.
  • Left -right compressing and pushing the bale out, the length of the bale can be adjusted, pushing out the bale continuously to improve work efficiency.
  • PLC program control electric button control, simple operation with feeding detection, and automatic compression.
  • The baling length can be set, and there are bundling reminders and other devices.
  • The size and voltage of the bale can be customised according to the reasonable requirements of the customer. The weight of the bale is different for different packaging materials.
  • Three-phase voltage safety interlock has a simple operation, can be equipped with an air pipe and conveyor feeding material, with higher efficiency.

Customizable colors:

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW40F JPW60F JPW80F JPW100F
Compression Force (Ton) 40 60 80 100
Bale Dimension (WHL) mm 720*720*(500-1300) 750*850*(500-1600) 1100*800*(500-1800) 1100*1100*(500-1800)
Feeding Mouth Size (L*W) mm 1000*720 1200*750 1500*1050 1800*1100
Number of Strapping Channels 4 4 4 5
Bale Weight (Kg) 200-400 300-500 400-600 700-1000
Power/Horsepower (Kw/Hp) 11Kw/15Hp 15Kw/20Hp 22Kw/30Hp 30Kw/40Hp
Baling Capacity (Ton/Hr) 1-2 2-3 4-5 5-7
Bale Discharging Method Continuous Push Pack Continuous Push Pack Continuous Push Pack Continuous Push Pack
Machine Dimension (LWH) mm 4900*1750*1950 5850*1880*2100 6720*2100*2300 7750*2400*2400
