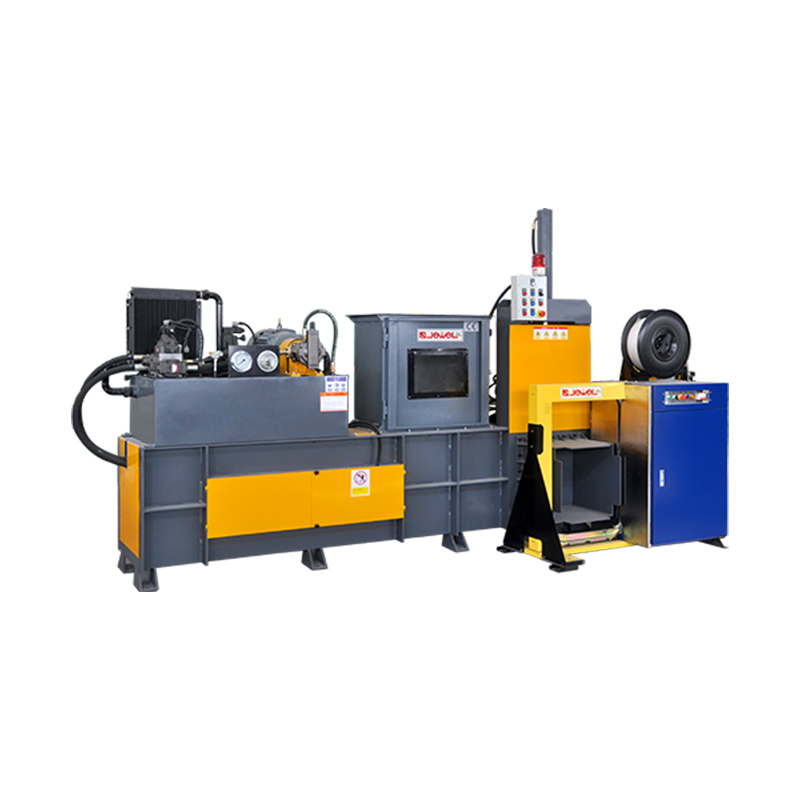

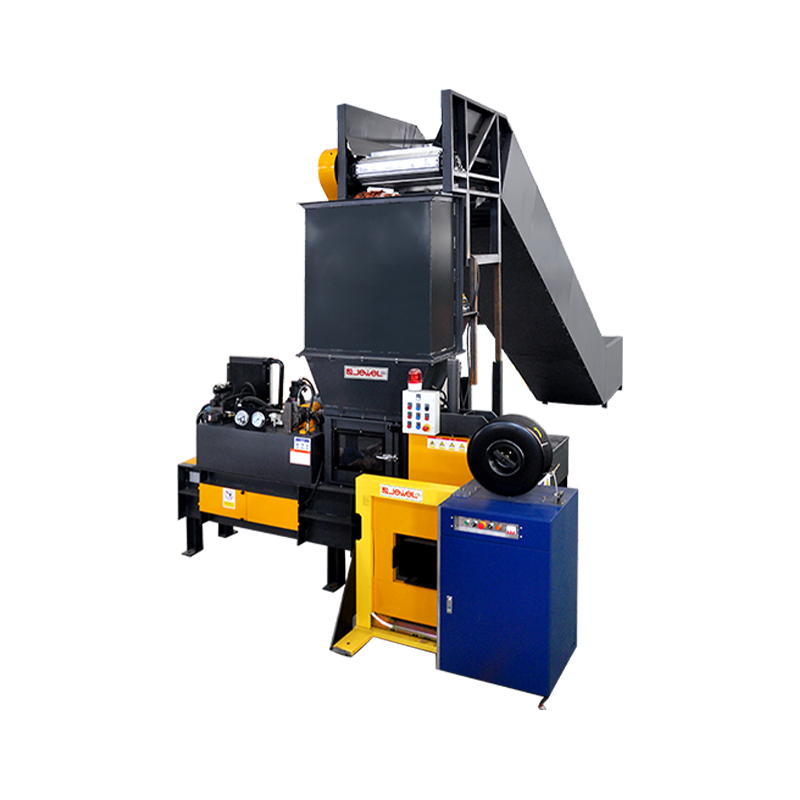

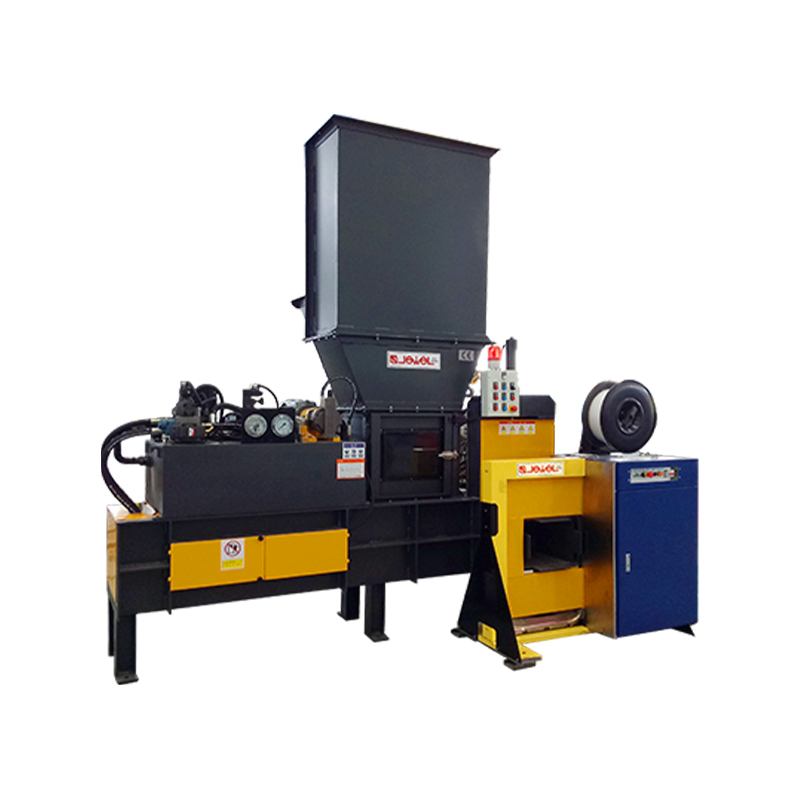

Small Horizontal Fully Automatic Compression Baler (PP Strapping)

It is widely used in the compression, baling and recycling of materials such as printing, special paper, film, fibre and non-woven fabric scraps and so on.
Unmanned full automatic compression baling machine, compression and baling are automatically completed.

  • PP strapping reduces the cost of auxiliary materials, facilitates storage and transportation, and reduces labour costs.
  • Double ram compression with high density, small materials can be bagged.
  • The feed opening can be connected to the air pipe and separator for feeding or conveying, or it can be directly used with a conveyor.
  •  Due to the special design of the machine, this model is only suitable for lightweight materials.
  • PLC program, electric button control, simple operation, self-contained feeding detection, automatic compression, and automatic PP strapping.
  • Three-phase voltage, safety interlock, simple operation, and it can be equipped with air pipes and conveyor feeding for higher efficiency.

Customizable colors:

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW20Q JPW30Q JPW40Q
Compression Force (Ton) 20 30 40
Bale Dimension (LWH) mm 500*500*500 700*700*700 800*800*800
Feeding Mouth Size (L*W) mm 700-460 900*660 1100*760
Number of Strapping Channels 2-4 3-5 3-5
Bale Weight (Kg) 30-70 70-130 100-150
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 7.5Kw/10Hp 11Kw/15Hp 15Kw/20Hp
Machine Dimension (LWH) mm 3400*3010*2400 4250*3120*2600 4750*3380*2900
Machine Weight (Ton) 2.8 3.3 3.7
