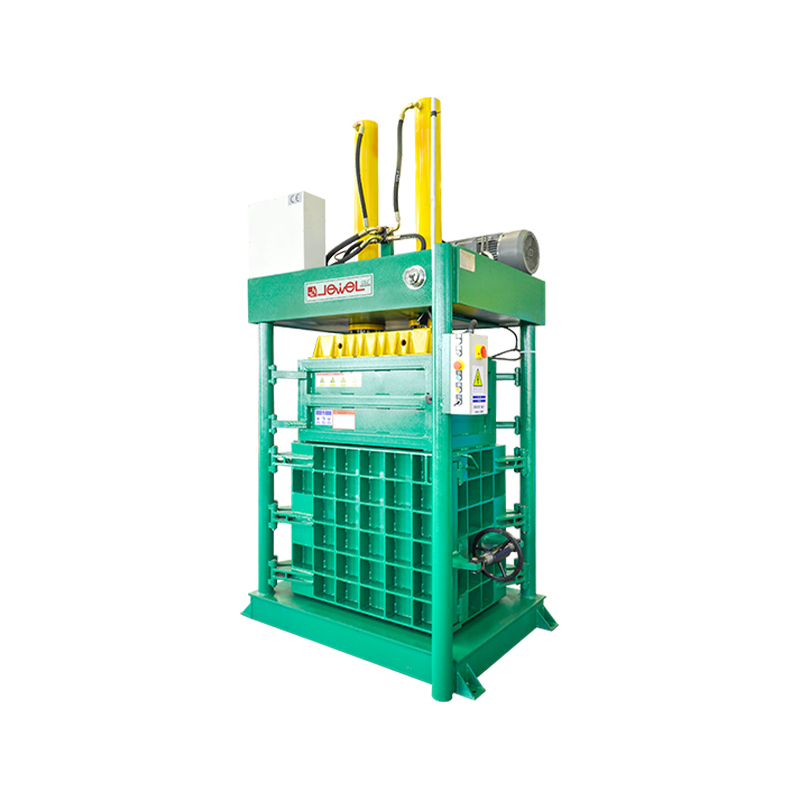

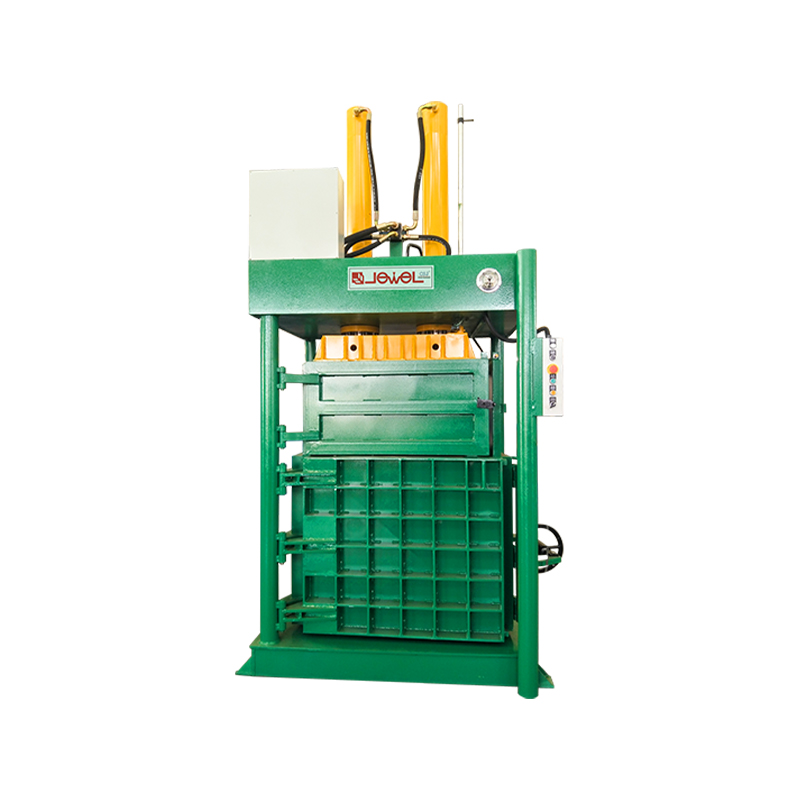

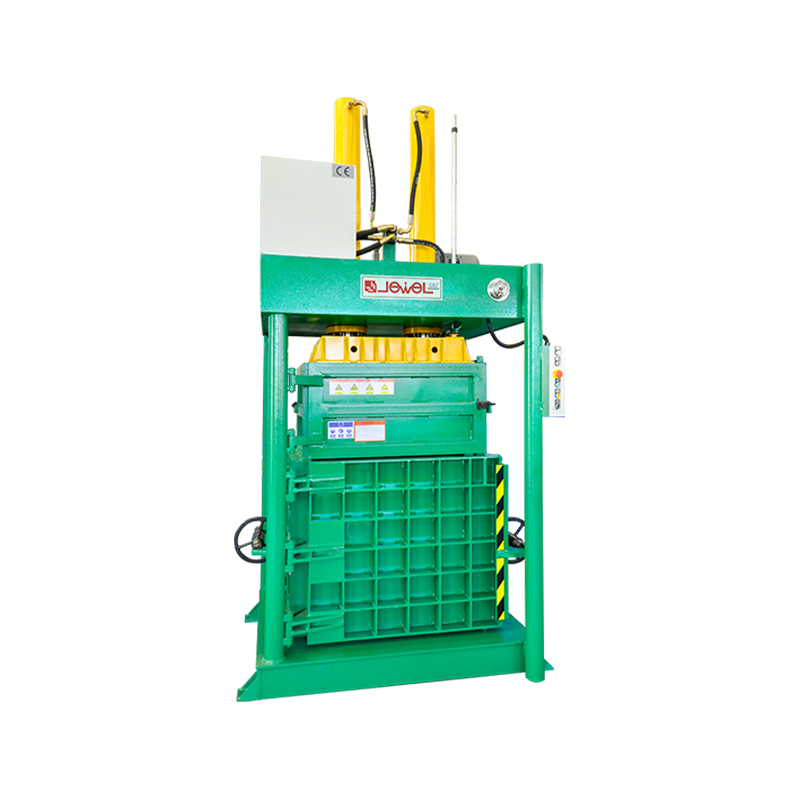

Large Vertical Four-Door Opening Baler

It is suitable for compressing and packaging hard plastics, PET bottles, hay, fibres/sponges, clothing and other items with high rebound force. It is also suitable for products that require outer packaging. The machine uses double cylinders for balanced compression, and a special hydraulic system keeps power more stable.

  • High load structure, safe and reliable.

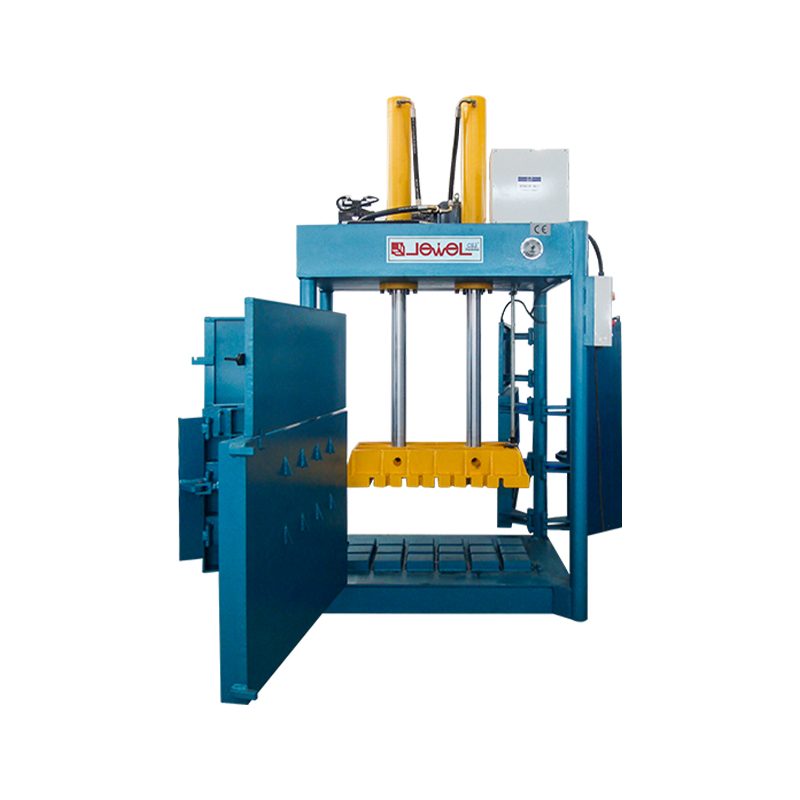

  • Adopting a four-sided door opening type, the bales are externally packed before bundling, and the bales can also be bundled in two directions with "#".
  • The size of the block can be designed according to the loading and the cabinet loading.
  • European and American standard locking devices are used to ensure the safety of operators.
  • The feeding chamber adopts a device to prevent material rebound, which greatly saves feeding time.

Customizable colors:

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Specification Item JPA070T80 JPA070T120 JPA1010T160
Model JPA070T80 JPA070T120 JPA1010T160
Compression Force (Ton) 80 120 160
Bale Dimension (LWH) mm 1000*700*(500-900) 1000*700*(500-900) 1100*1000*(400-1200)
Feeding Mouth Size (L*H) mm 1000*500 1000*500 1100*800
Baling Capacity (Bales/Hr) 4-6 4-6 4-6
Compression Chamber Size (LWH) mm 1000*700*1500 1000*700*1500 1100*1000*2000
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 11Kw/15Hp 15Kw/20Hp 30Kw/40Hp
Machine Dimension (LWH) mm 1800*1480*3500 2100*1700*3500 2100*1800*4600
Machine Weight (Kg) 2600 3200 6000
