Home > Products > Bagging Machines > Horizontal Compression Bagging Machine for Agriculture, Forestry, and Animal Husbandry

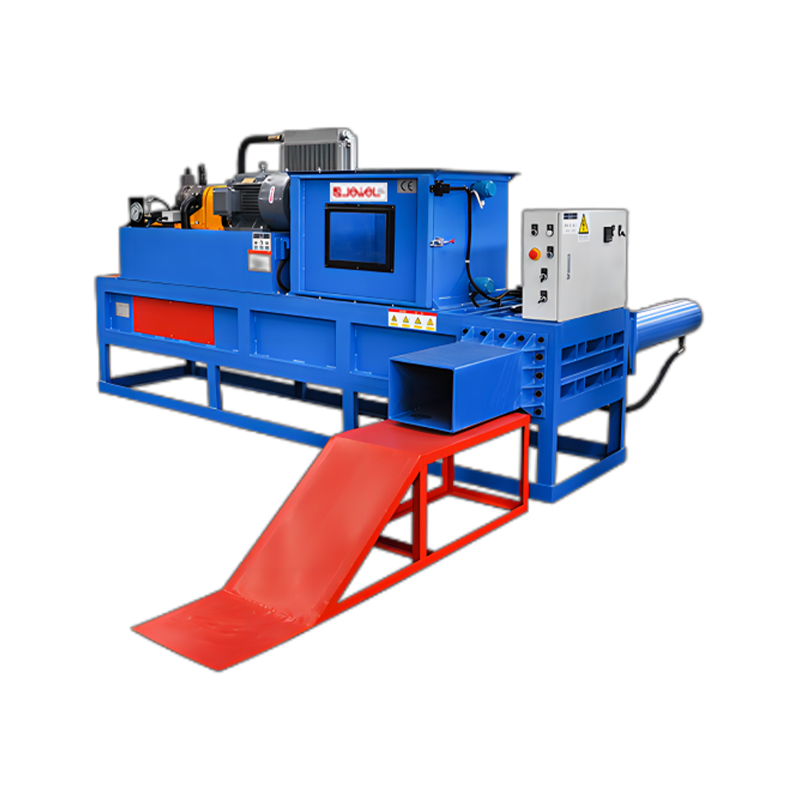

Horizontal Compression Bagging Machine for Agriculture, Forestry, and Animal Husbandry

Compressing and bagging for wood chips, wood shavings, corn silage, rice husk, cotton seed hulls, licorice, fibre, corncob, straw, hay, hops, etc.

  • Bagging is completed at one time, which is convenient for storage and reduces transportation costs.
  • Adopt a PLC control system, automatic compression, manual bagging, and cycle work, easy and convenient.
  • Can choose auto or manual mode for material feeding.
  • Can choose an automatic bagging system as an option.
  • Application: compressing and bagging for wood chips, wood shavings, corn silage, rice husk, cotton seed hulls, licorice, fibre, corncob, straw, hay, hops, etc.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW-KT90 JPW-KT110 JPW-KT140 JPW-KT180
Compression Force (Ton) 40/50 50/60 60/80 100/120
External Dimension of Bale Outlet (LWH) mm 700*394*326 700*394*326 700*394*326 700*450*270
Feeding Mouth Size (L*H) mm 1200*700 1200*700 1200*700 1200*700
Baling Capacity (Ton/Hr) 1.5-1.8 2-2.5 2.5-3 2.5-3
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 15Kw/20Hp 18.5Kw/25Hp 22Kw/30Hp 30Kw/40Hp
Machine Dimension (LWH) mm 3920*2880*1700 3920*2900*1700 3920*2880*1700 4250*3100*1700
Machine Weight (Kg) 2400 2700 3000 4300
Packaging Bag Size (W*H) mm 740*1150 740*1150 740*1150 740*1150
