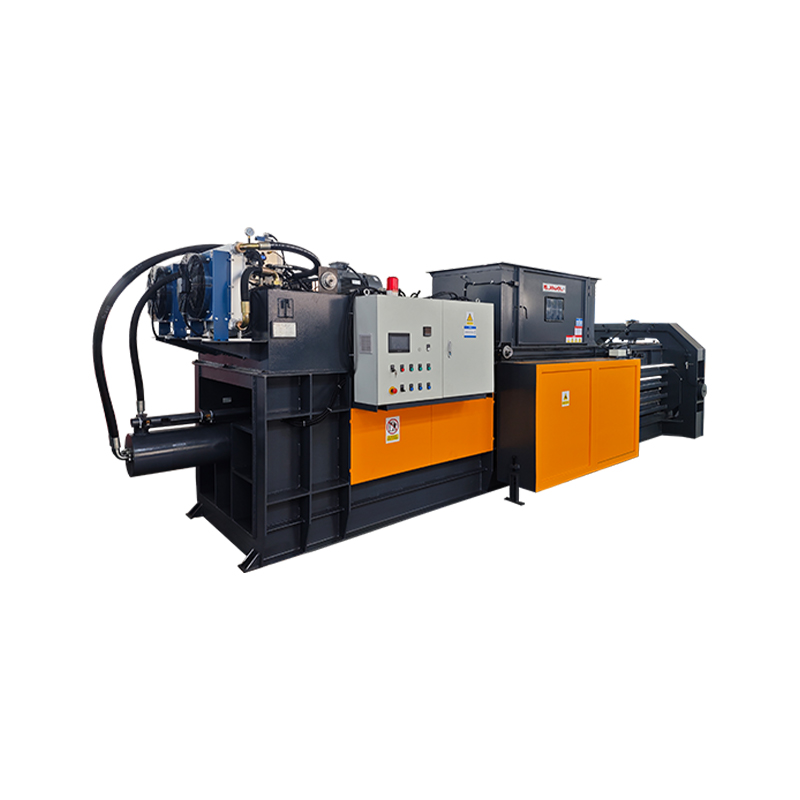

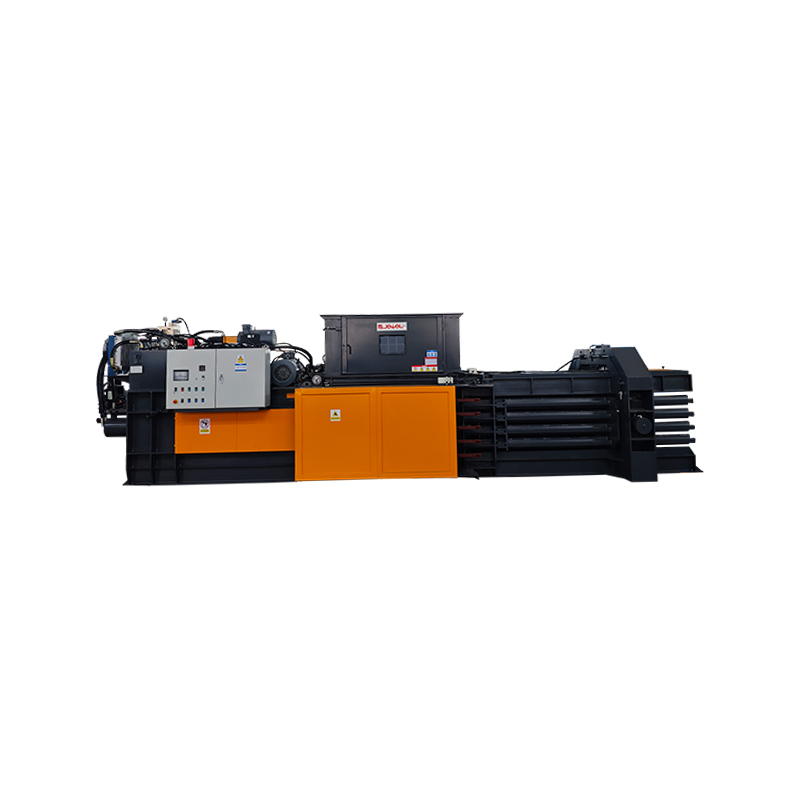

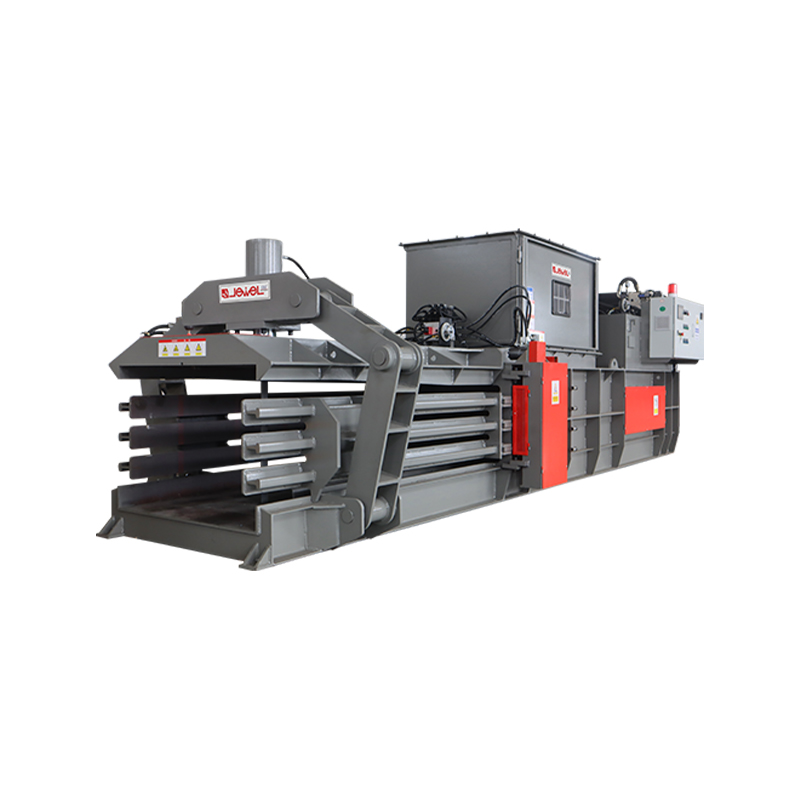

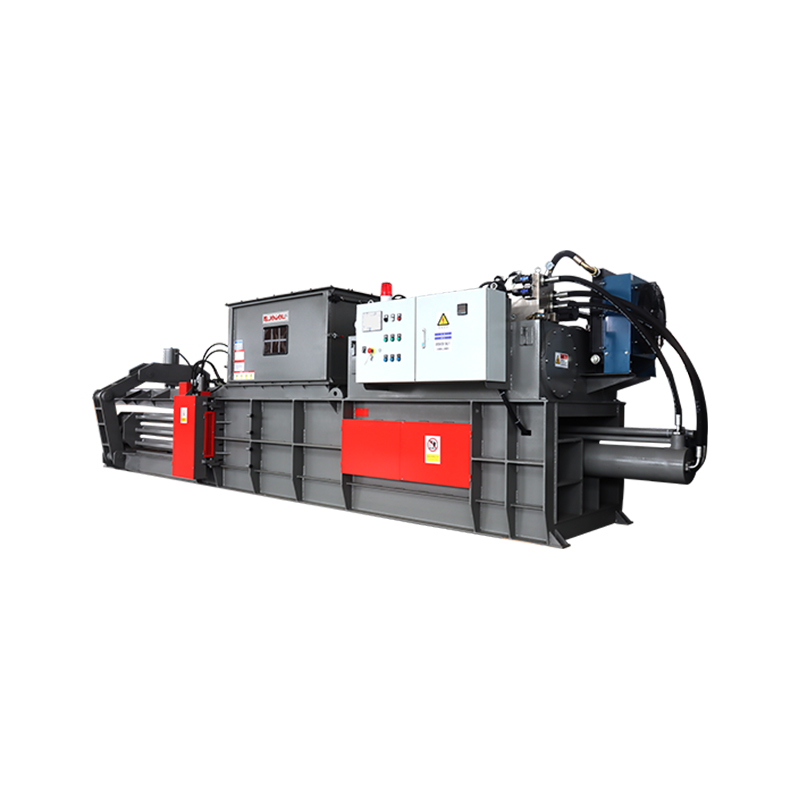

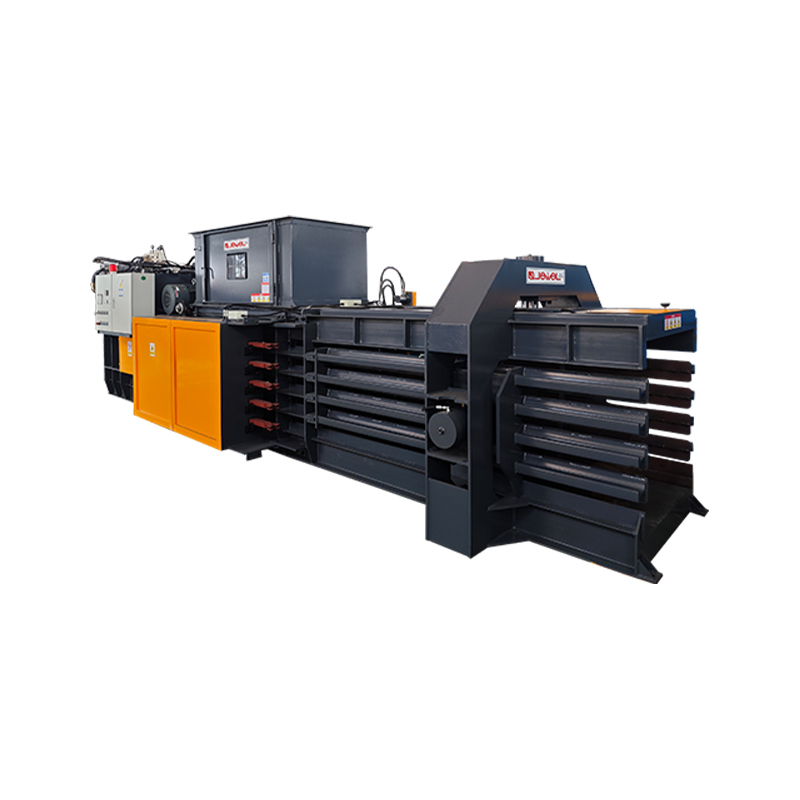

Medium Horizontal Fully Automatic Compression Baler

The horizontal fully automatic wire bundling model is widely applied in packaging plants, carton factories, printing plants, garbage sorting stations, professional recycling stations and other locations. It is suitable for materials such as waste paper, cardboard, plastics, fabrics, fibres and household garbage, and can be used with feeding methods like assembly line and air pipe feeding.

It adopts a three-sided reverse-pulling shrinking structure, which is automatically tightened and released by the oil cylinder—ensuring stable and powerful performance.
Equipped with PLC programming and touch screen control, it features simple operation. With feeding detection and automatic compression functions, it enables unmanned operation.
Its exclusive automatic bundling device boasts fast speed, a simple structure, stable operation, a low failure rate, and easy cleaning and maintenance.
The automatic fault diagnosis and display function enhances detection efficiency. It allows free setting of bale length and accurately records the number of bales produced.
The unique concave multi-point cutter design boosts cutting efficiency and extends the cutter’s service life.
It is equipped with a three-phase voltage safety interlock, which is simple and durable. When paired with an air pipe and conveyor feeding systems, it achieves higher feeding efficiency.

Customizable colors：

Applicable materials

Technical Parameters

Model	JPW80QT	JPW100QT	JPW120QT
Compression Force (Ton)	80	100	120
Bale Dimension (WHL) mm	1100800(300-1800)	1100900(300-2000)	11001100(300*2100)
Feeding Mouth Size (L*W) mm	1650*1050	1800*1050	2000*1050
Number of Strapping Channels	4	4	5
Baling Density (Kg/m³)	450-550	500-600	550-650
Baling Capacity (Ton/Hr)	4-7	6-10	8-13
Power/Horsepower (Kw/Hp)	37/50	45/60	52/70
Machine Dimension (LWH) mm	790042002100	840043002400	910043002400
Machine Weight (Ton)	11	13.5	17
