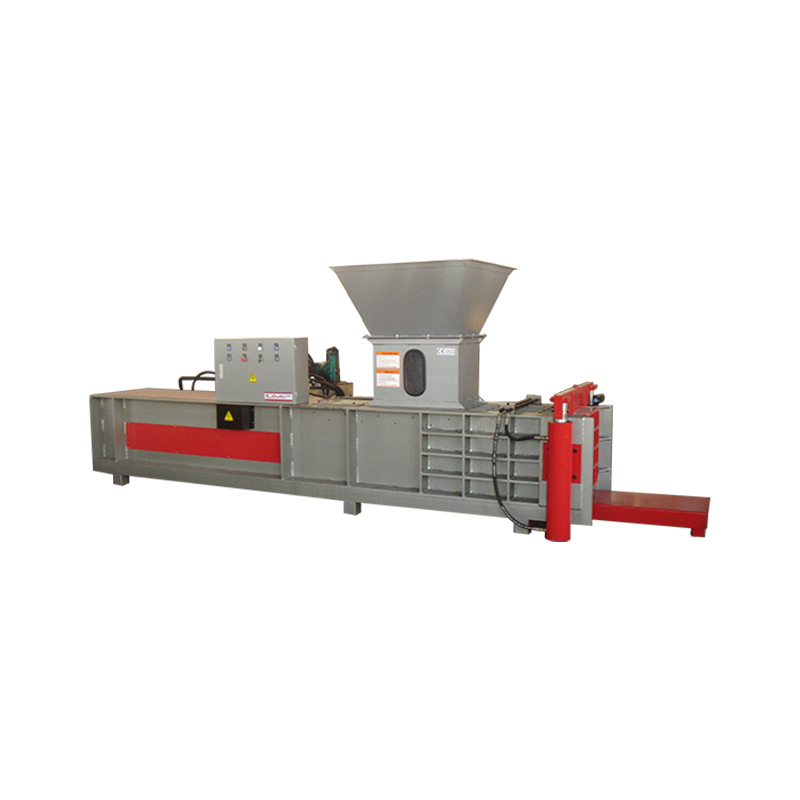

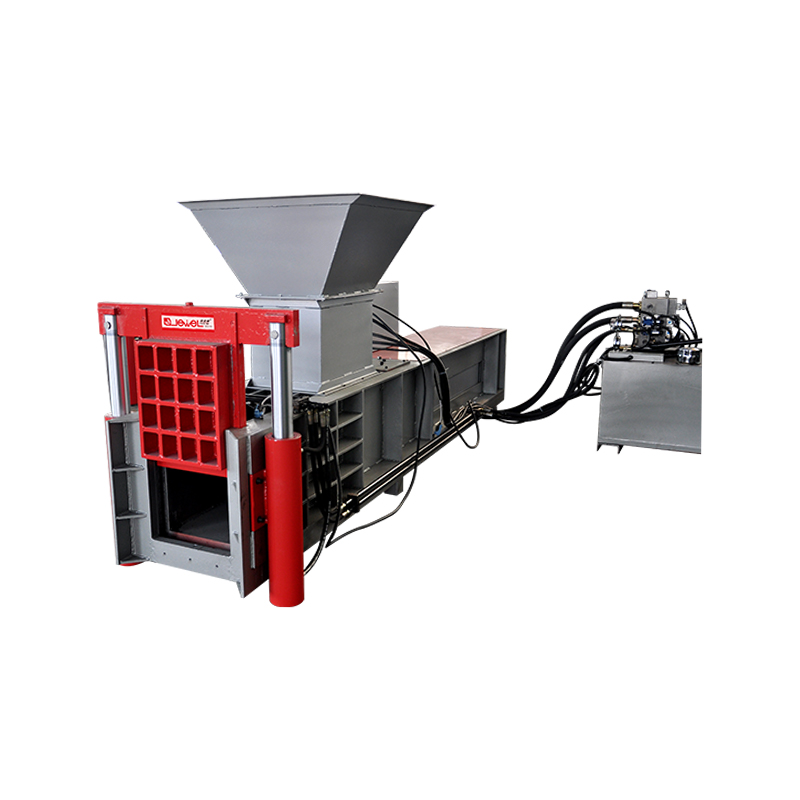

Horizontal Wood Chip/Pellet Briquetting Machine

Suitable for compressing wood sawdust, granules, powder, and other materials into a block, convenient for storage, saving storage and transportation costs.

  • Hydraulic-driven ensures stable performance.
  • Equipped with a detection feeding sensor, convenient for maintenance.
  • It can achieve unmanned production when equipped with a material feeding conveyor.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW-AK60 JPW-AK100 JPW-AK150 JPW-AK200
Compression Force (Ton) 60 100 150 200
Bale Dimension (WHL) mm 300*300*（200-300） 320*320*（200-250） 350*350*（200-300） 450*450*（200-300）
Feeding Mouth Size (L*H) mm 500*300 500*320 500*350 700*480
Bale Weight (Kg) 5-10 5-15 10-16 20-35
Baling Capacity (Ton/Hr) 0.2-0.5 0.4-0.8 0.65-1 1.5-1.8
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 15Kw/20Hp 18.5Kw/25Hp 22Kw/30Hp 30Kw/40Hp
Machine Dimension (LWH) mm 3900*900*1350 4000*920*1350 4200*950*1399 4260*1100*1800
Machine Weight (Kg) 2100 2600 3000 4000
Similar Materials Paper dust Fiber-based Wood shavings Wood flour
