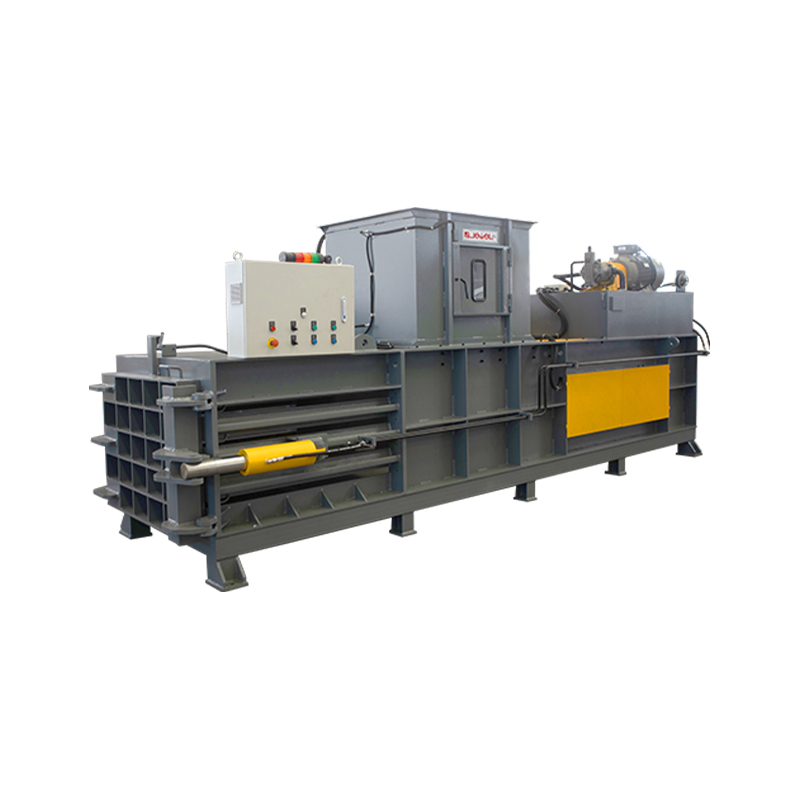

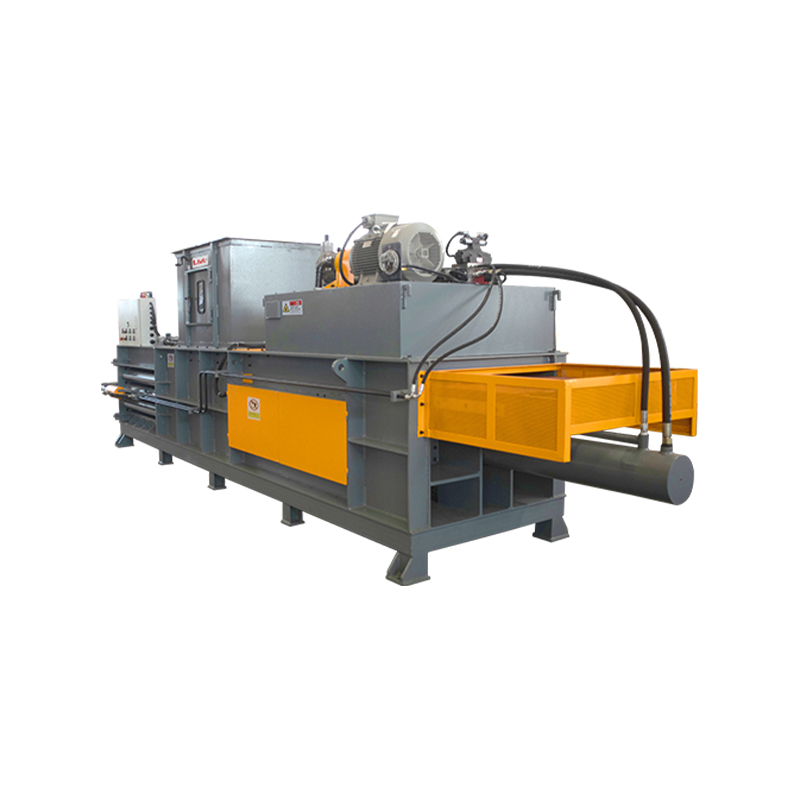

Horizontal Semi-Automatic Multifunctional Hydraulic Baler

It is suitable for the compression and packaging of various conventional materials such as hard cardboard, plastic, fibre, sponge, cloth, etc., and is widely used in various factories and recycling industries.

  •  The closed-type left and right opening structure makes the bale more compact.
  •  High-strength bale-out door, hydraulic door locking, with safe and convenient operation.
  •  PLC program control, electric button control, with feeding detection and automatic compression.
  •  The bale length can be set, and there is a bundling reminder device.
  • Each iron wire or strapping rope only needs to be inserted manually once to complete the twisting, saving labour.
  • The size and voltage of the bale can be customised according to the reasonable requirements of the customer, and the weight of the bale is different depending on the material.

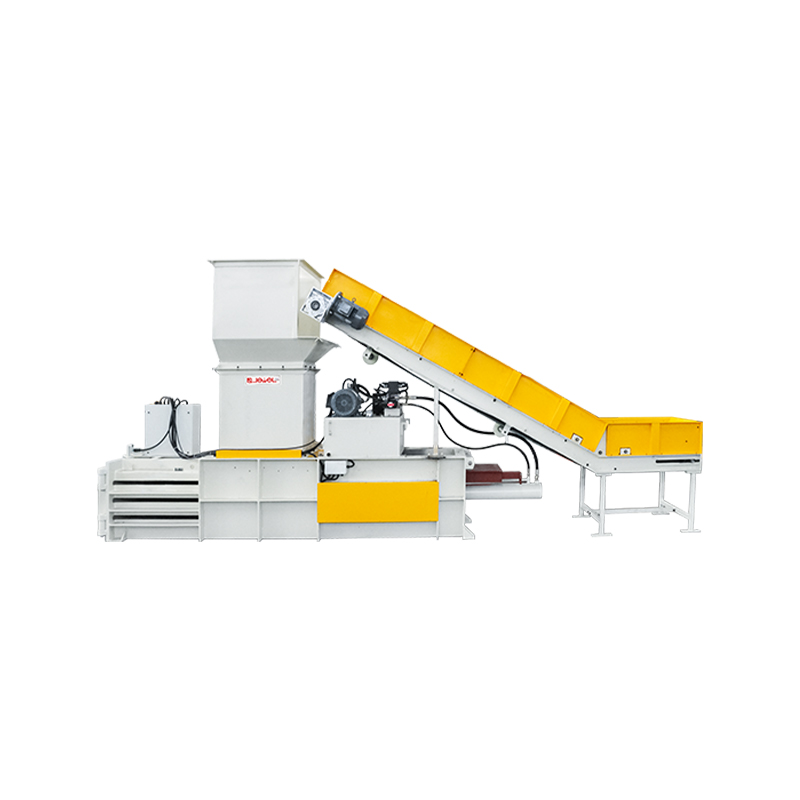

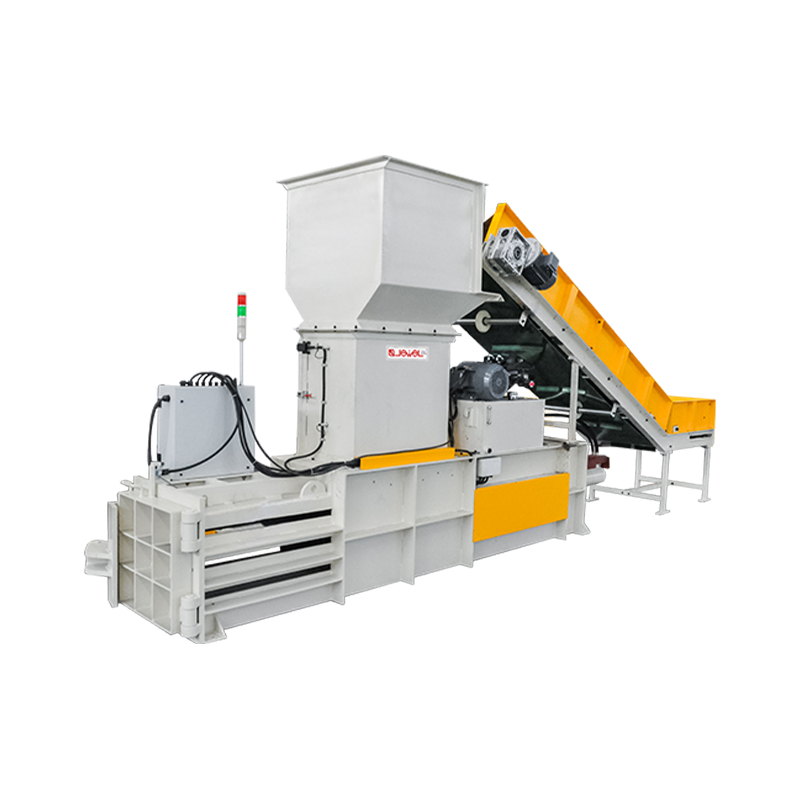

  •  Three-phase voltage, safety interlock, simple operation, can be equipped with an air pipe and conveyor feeding material with higher efficiency

Customizable colors:

Nantong Jiabao Machinery Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW40BC JPW60BC JPW80BC JPW100BC JPW120BC JPW150BC
Compression Force (Ton) 40 60 80 100 120 150
Bale Dimension (WHL) mm 720*720*(300-1000) 750*850*(300-1100) 1100*800*(300-1100) 1100*1100*(300-1100) 1100*1250*(300-1200) 1100*1250*(300-1300)
Feeding Mouth Size (L*W) mm 1000*720 1200*750 1350*1100 1500*1100 1600*1100 1800*1100
Number of Strapping Channels 4 4 4 5 5 5
Bale Weight (Kg) 250-350 350-500 500-600 600-800 800-1000 1000-1200
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 15Kw/20Hp 18.5Kw/25Hp 22Kw/30Hp 30Kw/40Hp 37Kw/50Hp 45Kw/60Hp
Machine Dimension (LWH) mm 6500*1200*1900 7200*1310*2040 8100*1550*2300 8300*1600*2400 8500*1600*2400 8800*1850*2550
Bale Discharging Method One screw-up One screw-up One screw-up One screw-up One screw-up One screw-up
