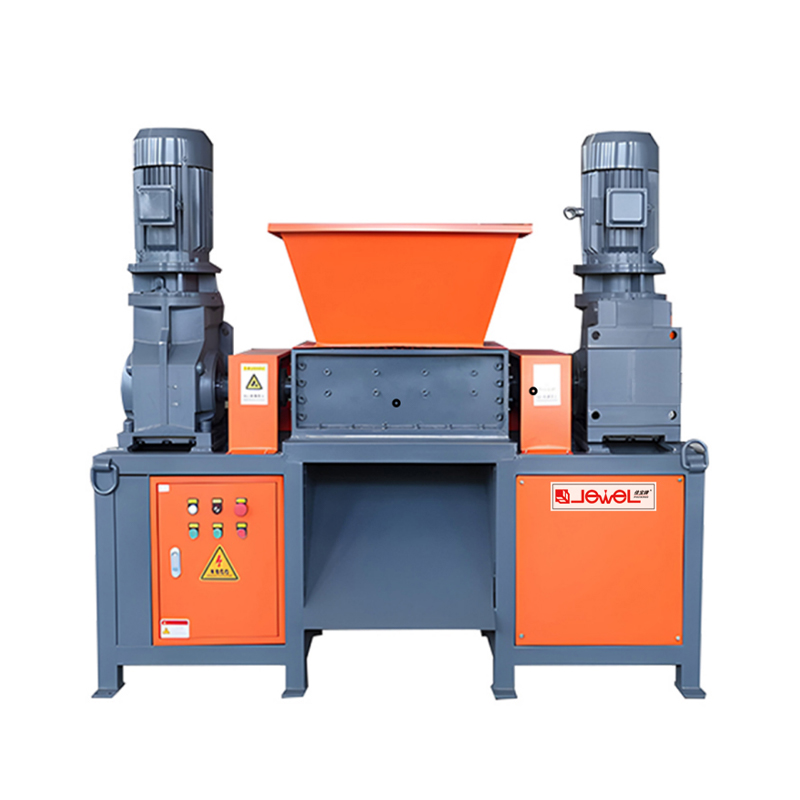

Small Dual-Shaft Shredder

At the heart of the equipment are two inter meshing cutter shafts,which achieve powerful shredding through precise shearing and tearing. The output size is flexibly controlled: thinner blades yield finer particles, while more cutter teeth result in shorter fragments,fully meeting your diverse requirements.

Integrating multiple advantages including low power consumption, high torque, low noise, and low dust, it offers wide applicability. It is an ideal solution for waste recycling, confidential destruction, transport volume reduction, and various solid waste processing needs.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model Power (KW/HP) Blade Width (mm) Blade Quantity Blade Materials Feeding Size (mm) Shredding Chamber Dimension (mm) Output Width (Customizable Length) (mm) Capacity (Ton/Hour)
JP-DS200 1.5 8 21 M6V 400*400 300*350 8 0.05-0.1
JP-DS300 3 12 24 M6V 400*400 300*350 12 0.1-0.2
JP-DS300S 3*2 12 24 M6V 400*400 300*350 12 0.1-0.2
JP-DS400 5.5 15 26 M6V 550*500 400*450 15 0.2-0.3
JP-DS400S 5.5*2 15 26 M6V 500*500 400*450 15 0.2-0.3
JP-DS500 7.5 20 24 M6V 650*600 500*550 20 0.3-0.5
JP-DS500S 7.5*2 20 24 M6V 650*600 500*550 20 0.3-0.5
JP-DS600S 11*2 30 20 M6V 650*600 610*550 30 0.4-0.6
