Home > Products > Bagging Machines > Horizontal Fabric/Fiber Fixed-Weight Compression Bagging Machine

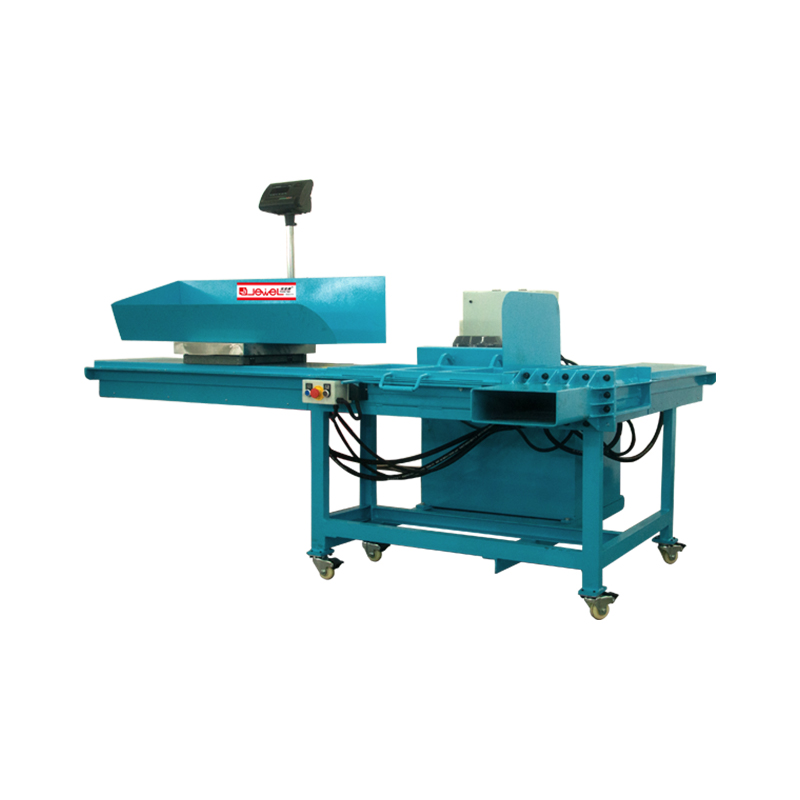

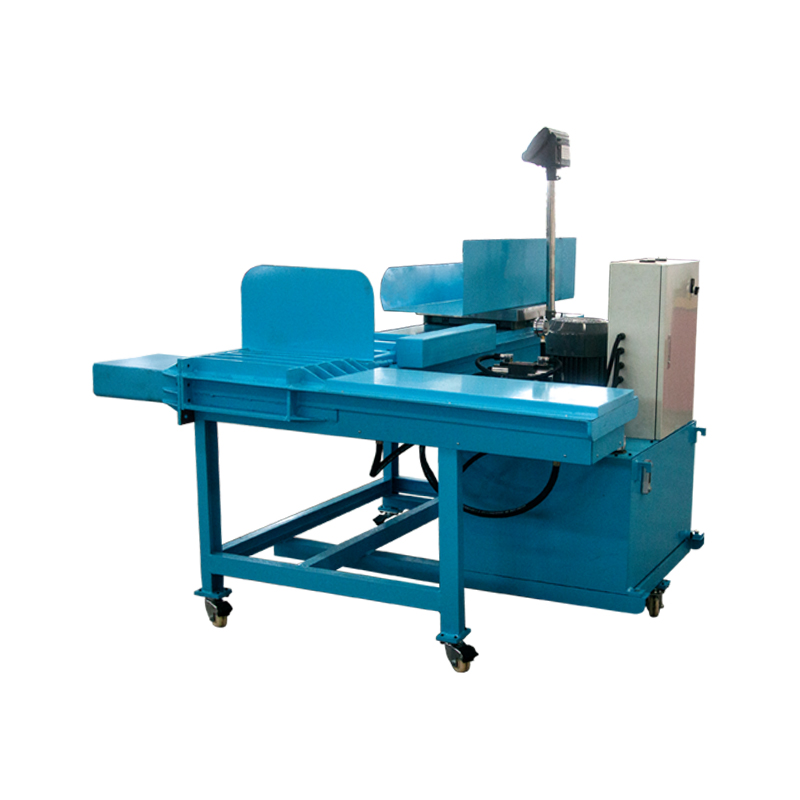

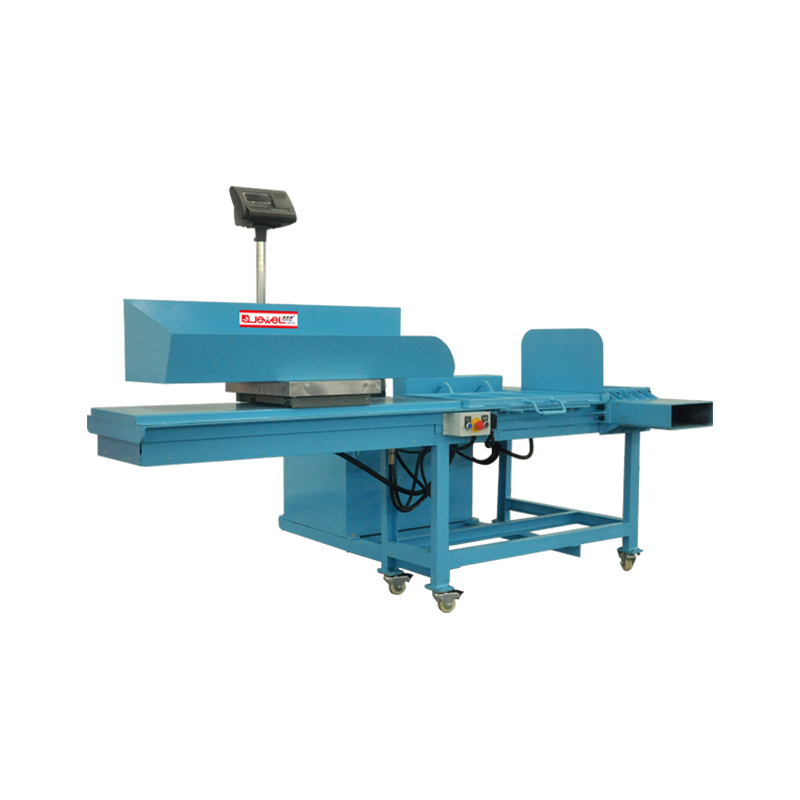

Horizontal Fabric/Fiber Fixed-Weight Compression Bagging Machine

Suitable for compressing and bagging fabrics, fibre and other materials.

  • Suitable for compressing and bagging material in small sizes.
  • Compressing and bagging are completed in one continuous integrated motion, improving productivity and efficiency.
  • With a weighing and counting function, which can effectively control the bale weight to be consistent and accurate.
  • The electric button operates, integrated circuit board control, one button operation, easy and convenient.
  • Manually put the packing bag on the outlet before unpacking.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPW-K5 JPW-K10 JPW-K15 JPW-K20 JPW-K25
Bale Dimension (WHL) mm 400*300*100 400*400*180 550*400*250 550*450*250 600*450*250
Bale Weight (Kg) 5 10 15 20 25
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 5.5/7.5 5.5/7.5 5/10 7.5/10 11/15
Machine Dimension (LWH) mm 2600*1750*1480 2660*1760*1550 2750*1810*1550 2980*2015*1550 3210*2330*1550
Machine Weight (Kg) 765 815 870 950 1050
Packaging Bag Size (W*H) mm 400*620 580*700 650*1000 700*1000 700*1050
