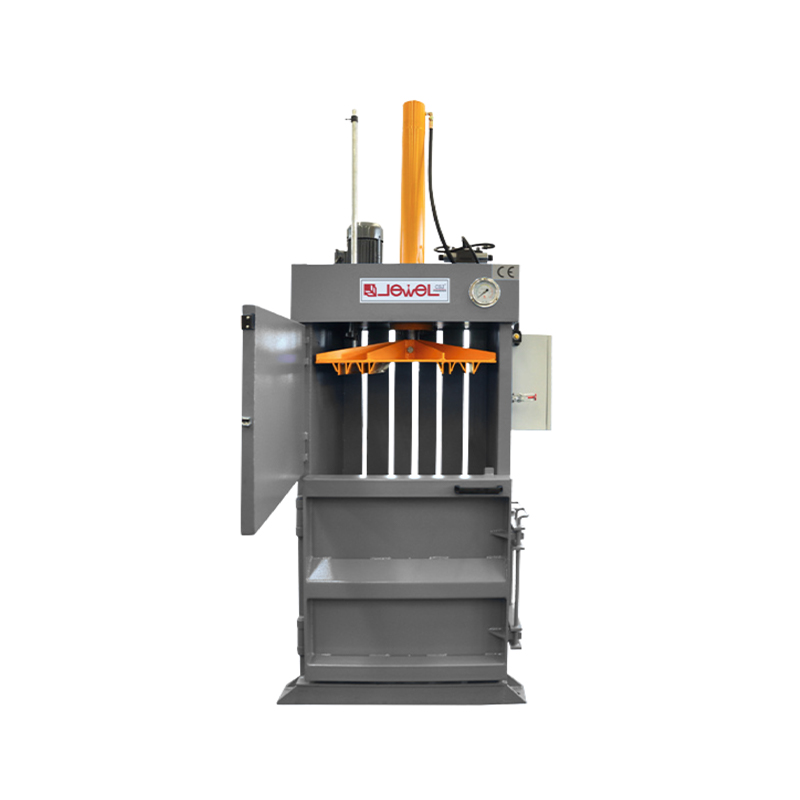

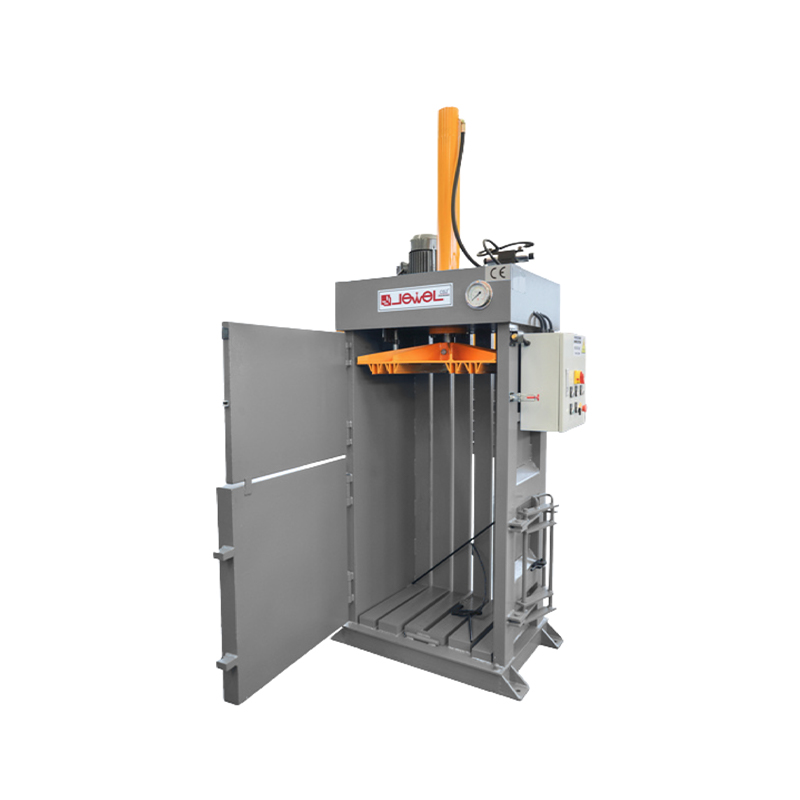

All-In-One Small Vertical Compression Baler

The all-in-one small vertical compression baler features a compact, integrated design, integrating the machine body, hydraulic system, and control panel for more convenient and centralised operation. Centralised control buttons enable multiple operating modes tailored to specific needs, allowing loading, compression, and bale discharge to be performed from a single interface, enhancing the convenience of daily operations. Its streamlined design and compact footprint make it suitable for space-constrained environments such as small and medium-sized enterprises or waste recycling stations.

This machine is equipped with an automatic bale discharge mechanism, which allows for the smooth ejection of compressed bales, reducing manual retrieval and simplifying operation. Users can control the entire baling process with a single button press, eliminating the need for frequent manual adjustments. It is suitable for compressing and baling a wide range of common recyclable materials. The machine's strategically placed feed port ensures smooth material delivery, and the automatic bale discharge function ensures continuous and efficient operation.

Customizable colors:

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Item Specification 1 Specification 2 Specification 3
Feeding Mouth Size (L*H) 800*450 800*450 800*450
Baling Capacity (Bale/Hr) 4-7 4-7 4-7
Bale Weight (KG) 50-120 80-120 100-150
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 3Kw/4Hp 4Kw/5.5Hp 5.5Kw/7.5Hp
Machine Dimension (LWH) mm 1280*900*2870 1280*900*3020 1280*900*3050
Machine Weight (KG) 850 1050 1200
About Us
Shanghai Jewel Tech Co., Ltd.
Shanghai Jewel Tech Co., Ltd.

As All-In-One Small Vertical Compression Baler Manufacturers and All-In-One Small Vertical Compression Baler Factory, Shanghai Jewel Tech Co., Ltd., established in 2006 (the brand was founded in 1995), specializes in the research, development, and manufacture of environmentally friendly, intelligent compression and baling equipment. We boast a 50,000-square-meter modern production facility and a team of over 200 professionals.

Leveraging our extensive manufacturing experience, we offer our customers:

Semi-automatic/fully-automatic compression and baling machines. Intelligent waste removal systems for various industries. Automatic compression and wrapping systems. Integrated crushing, compression, and baling machines. Customized industry solutions.
