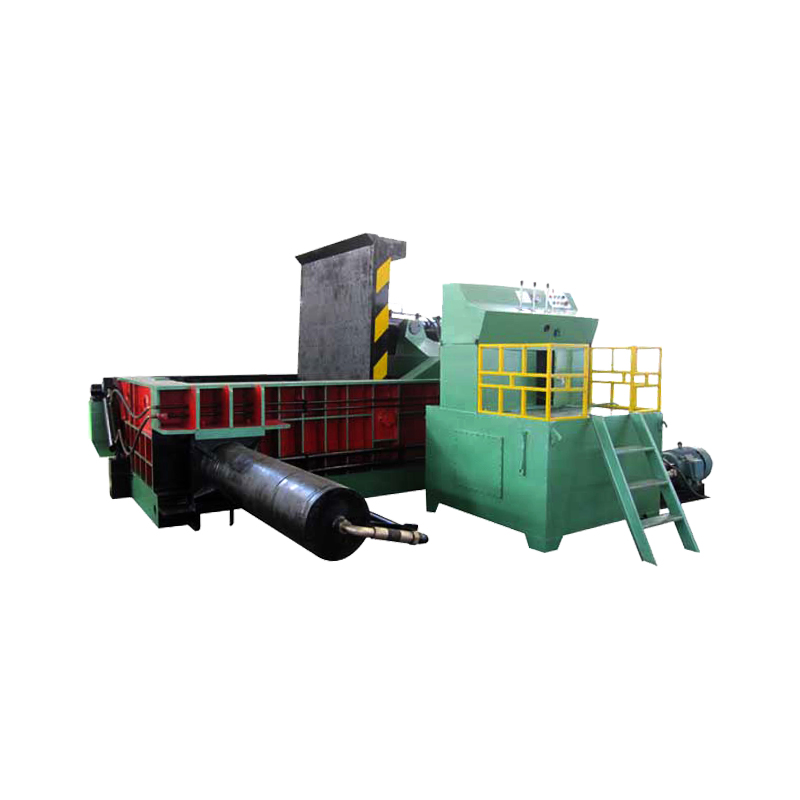

Metal Hydraulic Baler

Apply to compressing of all kinds of metal scrap into blocks (steel shavings, waste steel, waste aluminium, waste copper, waste stainless steel, and scraped cars, etc. ) . Widely used for steel mills, recycling companies, lathe turnings, scraps, metal recycling, and nonferrous metal, ferrous metal smelting industries.

  • All models adopt a hydraulic drive, manual control.
  • Bales come out by overturning.
  • Distributive hydraulic principle improves efficiency.
  • The feeding chamber has a cutting function to prevent additive materials caused by carelessness and safety accidents.
  • Adopt a double-pressure protection device.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Model JPY81-100A JPY81-100B JPY81-125A JPY81-125B JPY81-135A JPY81-135B JPY81-160A/B JPY81-200A/B JPY81-250A JPY81-250B JPY81-315A JPY81-315B JPY81-400A JPY81-400B
Compression Force 100T 100T 125T 125T 135T 135T 160T 200T 250T 250T 315T 315T 400T 400T
Hopper Size 1000*600*500mm 1000*600*500mm 1200*700*600mm 1200*700*600mm 1400*600*600mm 1400*600*600mm 1600*1000*700mm/1600*1000*800mm 1600*1200*800mm 2000*1400*1000 2000*1400*1000 2600*1750*1200mm 2600*2000*1200mm 2600*2000*1200mm 3000*2000*1200mm
Bale Cross-Section 200*200mm 200*200mm 250*250mm 250*250mm 600*240mm 600*240mm 350*350mm 450450mm/400400mm 400*400mm 450*450mm 600*600mm 600*600mm 600*600mm 600*600mm
Power 11KW/15HP 11KW/15HP 15KW/20HP 15KW/20HP 22KW/30HP 22KW/30HP 22KW/30HP 30KW/40HP 45Kw/60Hp 45Kw/60Hp 75KW/100HP 75KW/100HP 2*45KW/120HP 2*45KW/120HP
Operation Method Manual PLC Automatic Manual PLC Automatic Manual PLC Automatic Manual/PLC Automatic Manual/PLC Automatic Manual PLC Automatic Manual PLC Automatic Manual PLC Automatic
Bale Discharging Method Bale Tilting Side Pushing Bale Tilting Side Pushing Side Pushing Side Pushing Bale Tilting/Side Pushing Bale Tilting/Side Pushing Bale Tilting Side Pushing Bale Tilting Side Pushing Bale Tilting Side Pushing
