Home > Products > Vertical Balers > Vertical Plastic Baler > Medium Vertical Dual-Cylinder (Right-Angle Door Opening) Hydraulic Baler

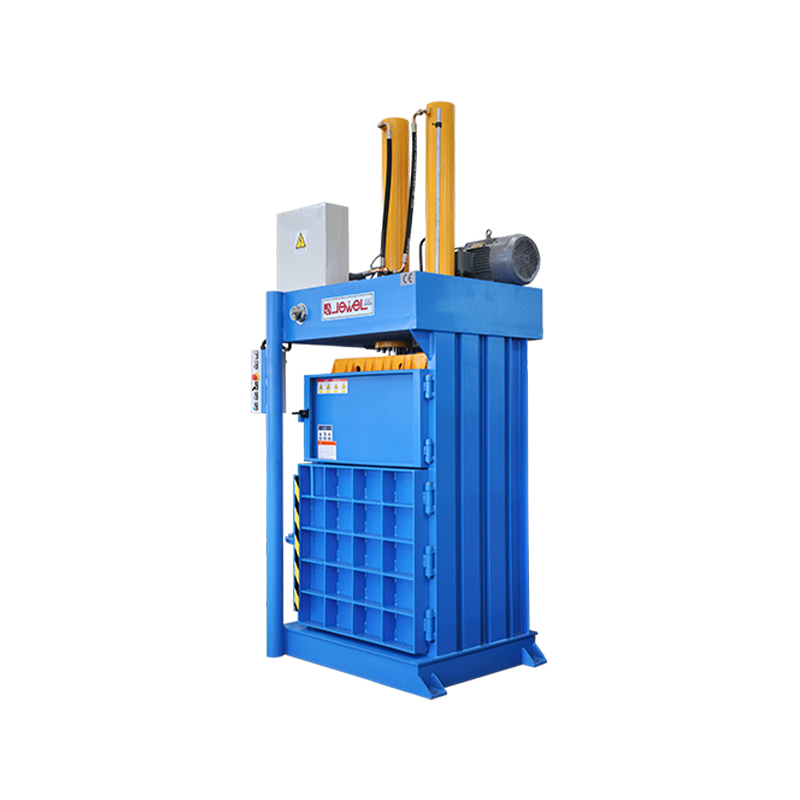

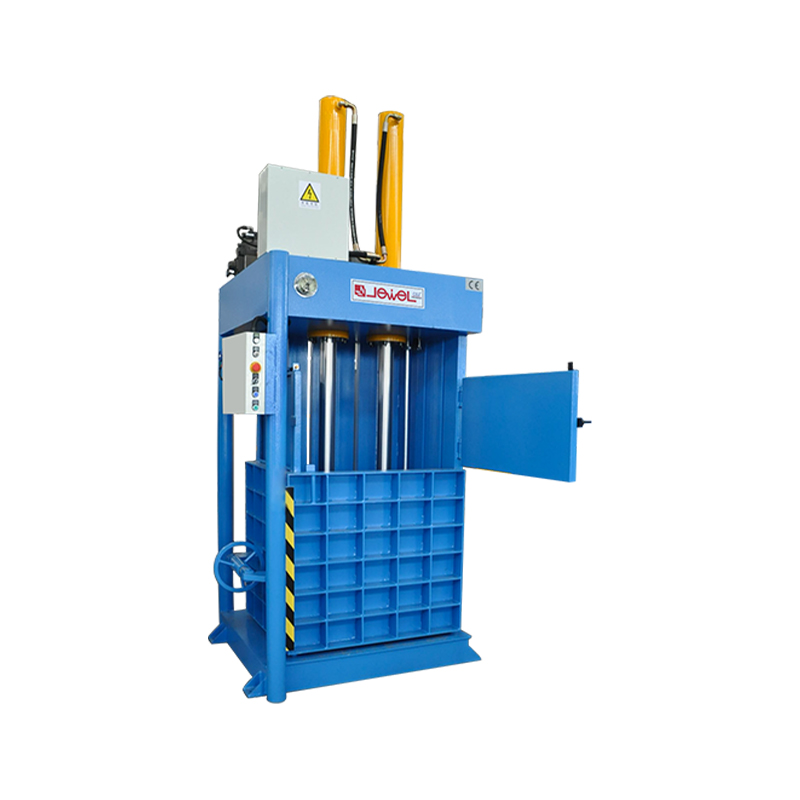

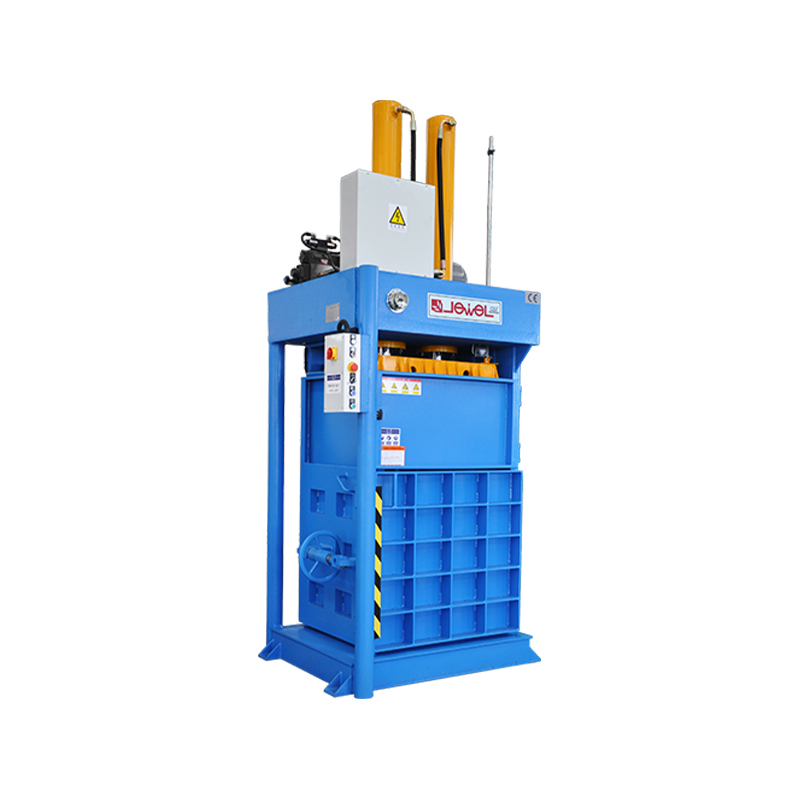

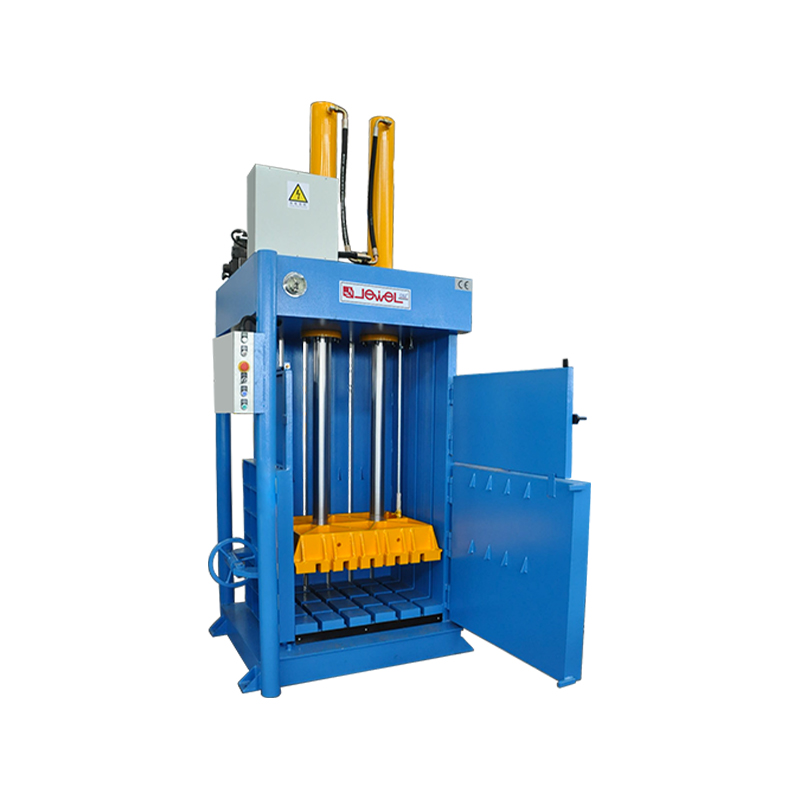

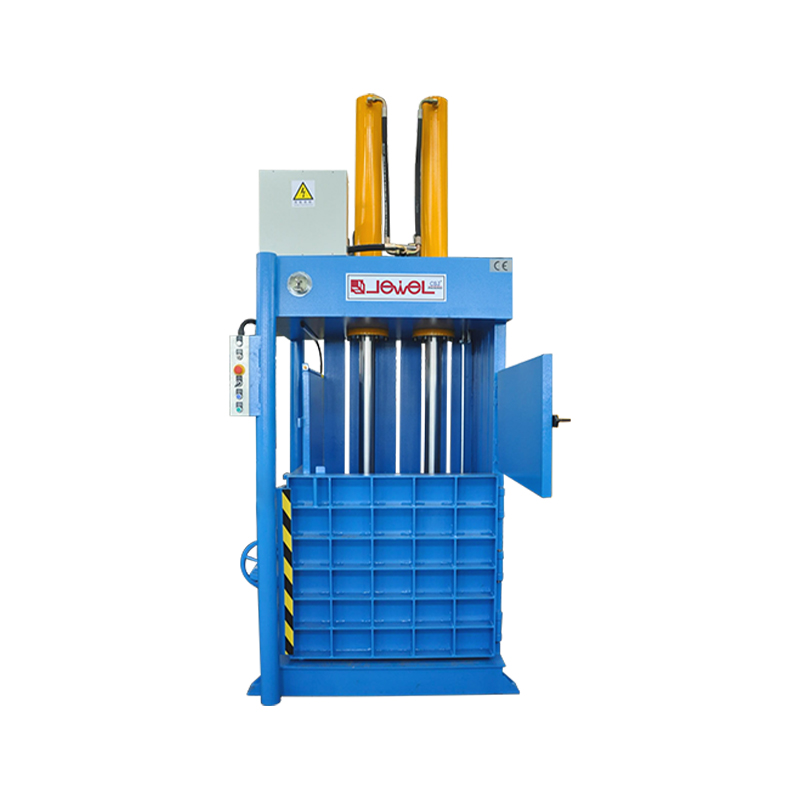

Medium Vertical Dual-Cylinder (Right-Angle Door Opening) Hydraulic Baler

Widely used in waste plastics (hard plastics, soft plastics), fibers, sponges, and other industries, as well as compressed packaging of items that need to be tied with "#".

  • This machine uses double cylinder balanced compression, and a special hydraulic system keeps the power more stable.
  • High load structure, automatic bale-turning device, safe and reliable.
  • The door is opened at a right angle and can be locked with "#."
  • The compression chamber is equipped with a material anti-rebound device.

  • Double-cylinder with a strong compression force and a balanced pressure plate can solve the problem of bias caused by uneven feeding.

Customizable colors：

Shanghai Jewel Tech Co., Ltd.

Applicable materials

Technical Parameters

-
Specification Item JPA080T80 JPA080T100 JPA080T120
Model JPA080T80 JPA080T100 JPA080T120
Compression Force (Ton) 80 100 120
Bale Dimension (LWH) mm 1000*800*（500-1000） 1000*800*(500-1000) 1000*800*(500-1000)
Feeding Mouth Size (L*H) mm 1000*500 1000*500 1000*500
Baling Capacity (Bales/Hr) 3-6 3-6 3-6
Compression Chamber Size (LWH) mm 1000*800*1500 1000*800*1500 1000*800*1500
Voltage (Customizable) (V/Hz) 380V/50Hz 380V/50Hz 380V/50Hz
Power/Horsepower (Kw/Hp) 11Kw/15Hp 15Kw/20Hp 18.5Kw/25Hp
Machine Dimension (LWH) mm 1700*1450*3500 1700*1450*3500 1700*1450*3500
Machine Weight (Kg) 2800 3200 3400
