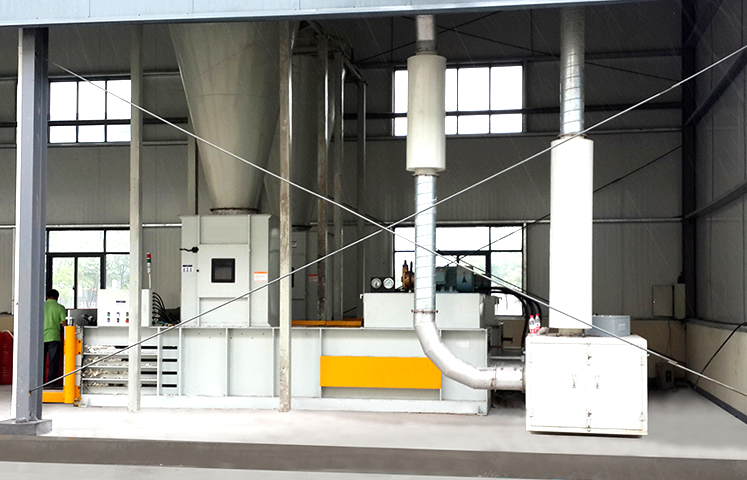

Paper Product Industry
Semi-automatic Compression Baler
Suitable for compression and baling of various conventional materials such as hard cardboard, plastic, fiber, sponge, cloth, etc.; widely used in various factories, recycling, and other industries.
< Click to view this product >

Waste Paper

Paper product scrap recycling system

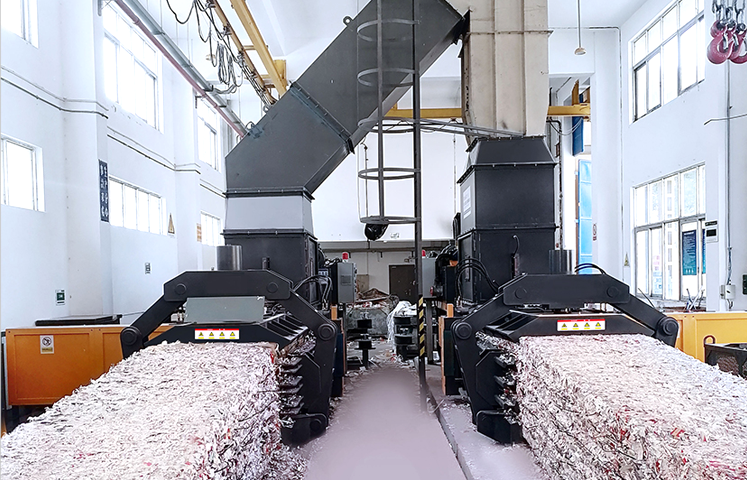

Paper products include disposable paper cups, instant noodle cups, sticky notes, exercise books, envelopes, and other items. Such products generate a large amount of paper edge-trimming waste and irregular waste from die-cutting machines. The paper product industry typically utilizes air duct suction conveying systems, where, depending on the type of waste, it is either crushed and transferred or conveyed without crushing.

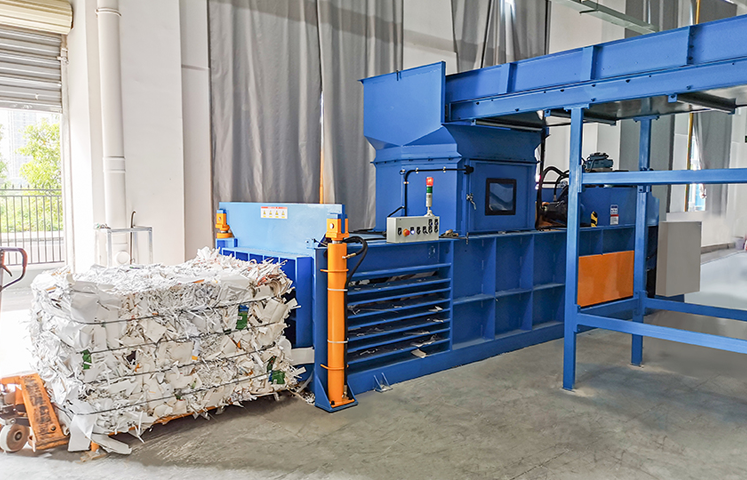

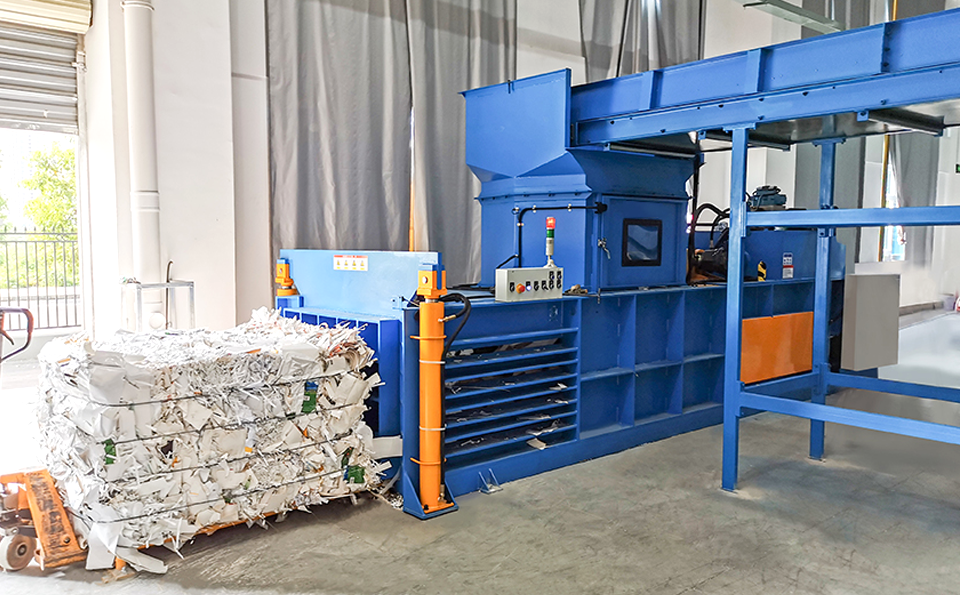

After being transported to the baling room, the waste is separated via a paper-gas separator, then fed into a baler for automatic or semi-automatic baling. The resulting dust can also be automatically collected by a bag-type dust collector, with a dust removal efficiency of up to 99%. The entire system can operate unmanned, significantly reducing labor costs and improving workshop environmental conditions.
click

Solution Process

1

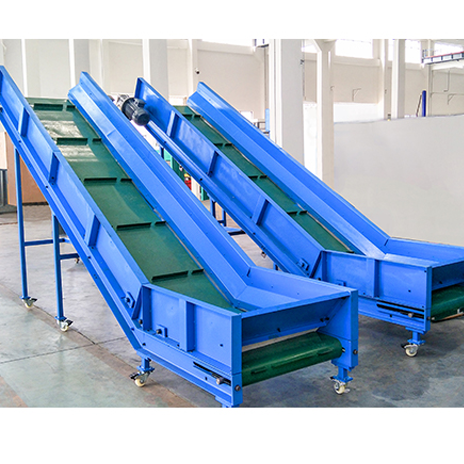

Belt Feeding Conveyor
×
Belt Feeding Conveyor
Scope of Application:
  • The conveyor is made of a specially customized four-layer PVC material, which boasts high wear resistance.
  • Interval baffles can be added to the PVC belt to prevent materials from slipping backward easily, thus increasing the feeding speed.
  • The bottom structure of the conveyor line comes in two types: triangular and horizontal.
2
Chain Plate Feeding Conveyor
×
Chain Plate Feeding Conveyor
  • The conveyor adopts an all-steel structure, which is stable and durable.
  • The horizontal section of the conveyor can be embedded in the ground pit. Efficient feeding can be achieved by directly and continuously feeding materials into the pit.
3

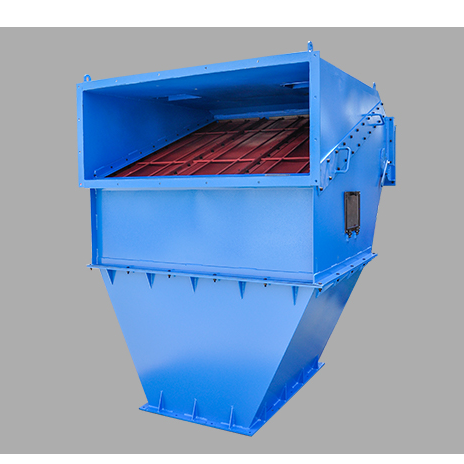

Plate separator
JPBSFL-1000/1500/2000/2500/3000
×
Plate separator
JPBSFL-1000/1500/2000/2500/3000
Scope of Application:
Specially designed for separating wind and material.
4

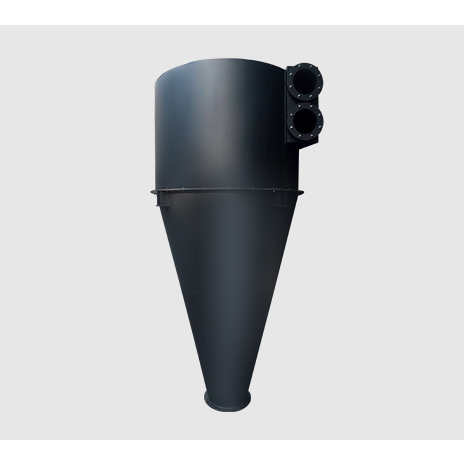

Cyclone separator
JPZQFL-1500/1800/2000/2200/2500
×
Cyclone separator
JPZQFL-1500/1800/2000/2200/2500
Scope of Application:
Specially designed for separating wind and material.
System Configuration:

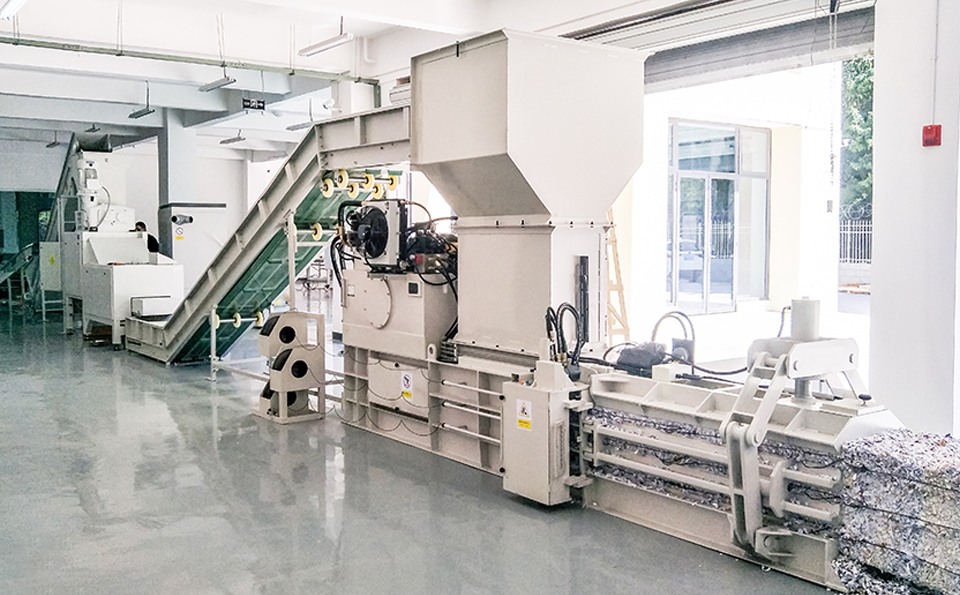

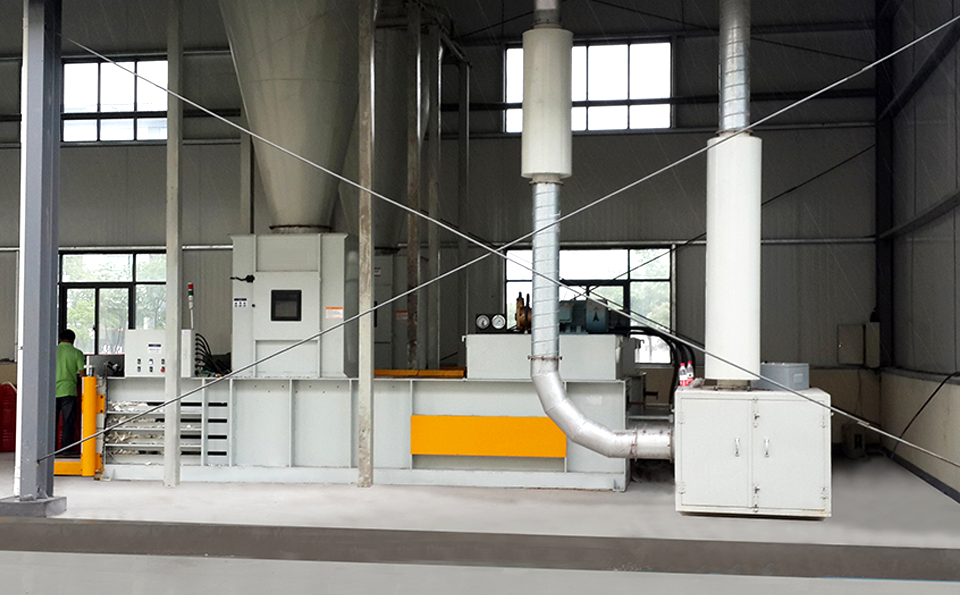

  • Semi-automatic hydraulic baler
  • Cyclone separator
  • Silencer
  • Shredder fan

System Configuration:

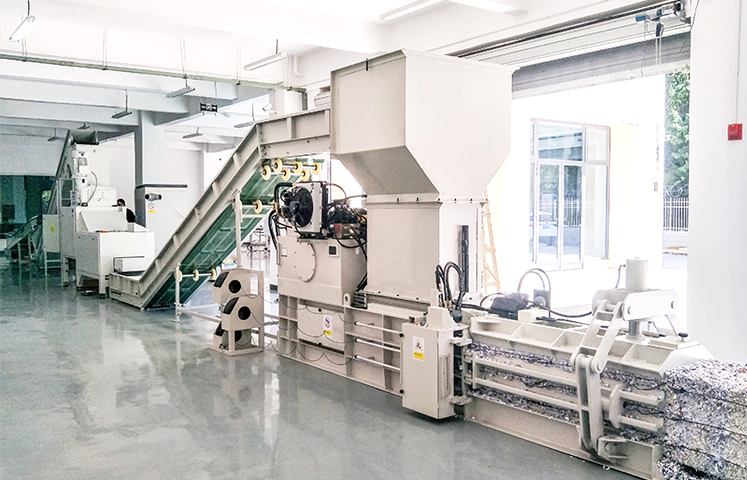

  • Semi-automatic hydraulic baler
  • Belt Feeding Conveyor

System Configuration:

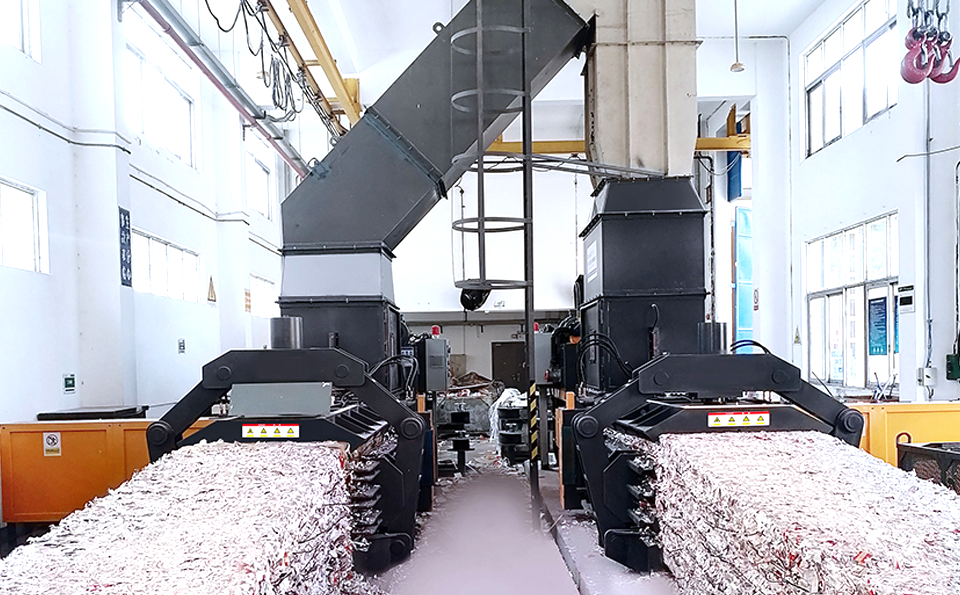

  • Automatic hydraulic baler
  • Belt Feeding Conveyor

System Configuration:

  • Automatic hydraulic baler
  • Cyclone separator

Recommended Models For the Waste Paper Industry
