Large garbage crushing, sorting, and packaging production line
Chain plate conveyor
The horizontal baler machine can realize auto
feeding, improving working efficiency, and saving
labor costs.
< Click to view this product >
Full-Automatic Baler
The horizontal fully automatic model automatic wire bundling machine is widely used in packaging plants, carton factories, printing plants, garbage sorting stations, and professional recycling stations. It is suitable for bundling waste paper, cardboard, plastics, fabrics, fibers, household garbage, etc. This machine can be used with assembly lines, air pipe feeding, and other methods.
< Click to view this product >
Shredding (Crushing) Machine
This series is widely used for processing a wide range of materials,
including plastic, metal, wood, paper, waste, and others. The shredded
materials are easy to compress and package for recycling purposes.
< Click to view this product >

Garbage Disposal

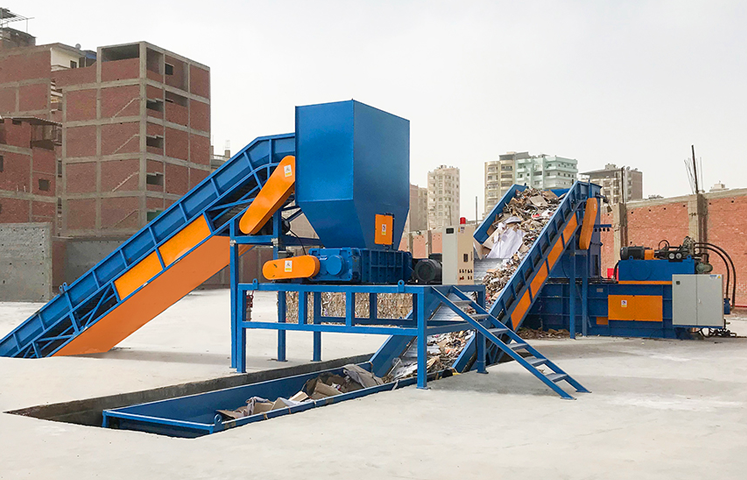

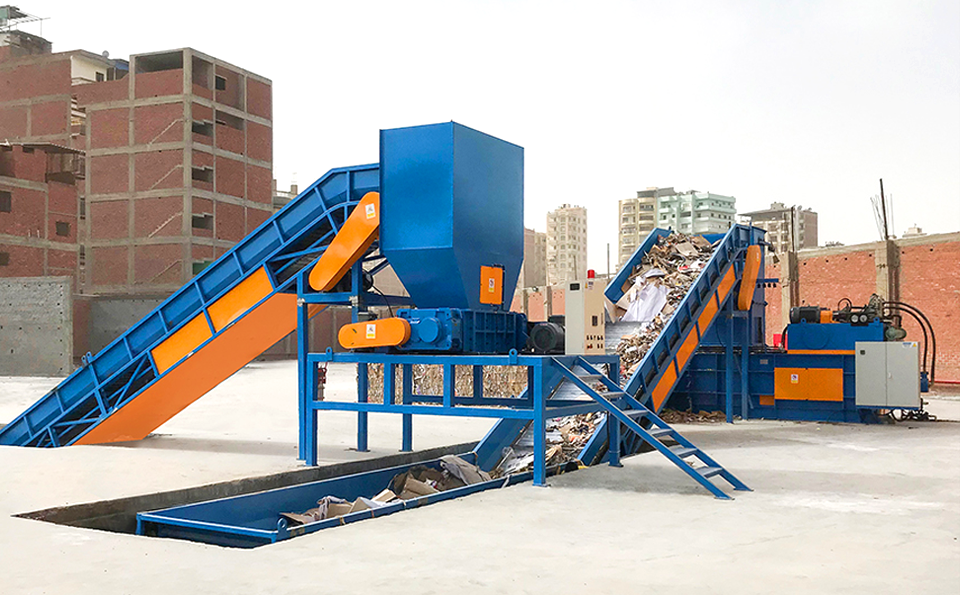

LARGE WASTE CRUSHING, CLASSIFICATION, AND BALING PRODUCTION LINE

Large pieces of waste (such as sofas, mattresses, and furniture) are fed into the chain conveyor either manually or via a grab truck. The chain conveyor then transfers these large waste items to the primary crusher for processing (including shearing, crushing, and tearing). The crushed materials (with a discharge particle size of less than 300mm) are further processed by the secondary crusher, which reduces them to a particle size of less than 100mm.
Next, an air separator sorts the crushed materials into heavy and light fractions, which are handled differently:
  • The light fraction is continuously crushed to 5-8cm by a fine crusher, then fed into an RDF extrusion granulator to produce RDF fuel.
  • The heavy fraction (primarily metal and wood) is separated using a magnetic separator to isolate pure wood. The metal is classified as a recyclable material, while the wood can be used as fuel for biomass thermal power plants or repurposed to manufacture plywood.
Dust generated during the crushing process is collected by a pulse dust collector, ensuring that the final exhaust gas meets environmental protection standards.
System Configuration:
  • Automatic hydraulic baler
  • Double Shaft Crusher
  • Chain plate type feeding conveyor
  • Pit conveyor line
